Overband Magnetic Separator Machine Recovery Magnets for Injection Moulding Machine Hoppers

Product Description

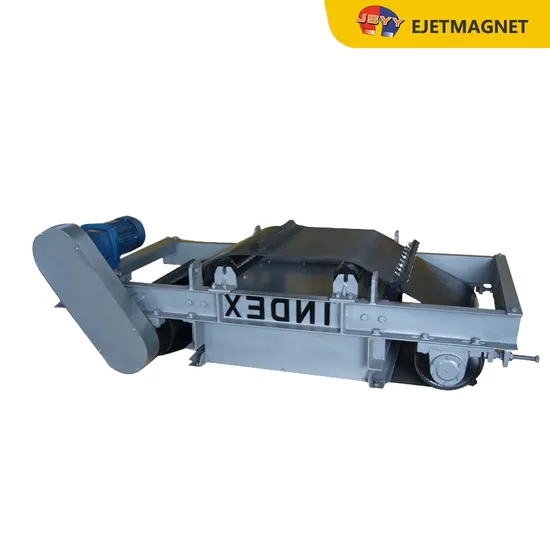

Armor belts conveyor materials metal scrap separator
Product Description
Separate ferromagnetic materials from moving materials on the belt, feeder hopper, or chute automatically.
The system used self-cleaning de-iron and could choose various belts.
Widely used in conveyer belts for environment protection, resource recycling, and the paper industry.


Standard Features and Benefits:

1. Applies computer simulation techniques, high magnetic force strength, and large gradient and suction.
2. High-performance materials, high magnetic energy product, good resistance to demagnetize, demagnetize less than 5% within 8 years.
3. Self-unloading ferromagnetic materials, smooth operation, running continuously without trouble for a long time.

Specification:

TYPES	Converor Belt Width	Rated Lifting Height	Magnetic Intensity	Motor Power	Appearance Measurement (mm)			Weight
	mm	mm	Gs	KW	L	W	H	KG
RCYD-Z6	650	200	≥450	2.2	2445	1447	380	820
RCYD-Z8	800	250	≥450	2.2	2645	1447	440	980
RCYD-Z10	1000	250	≥450	3.0	2875	1473	440	1220
RCYD-Z12	1200	250	≥450	3.0	3065	1473	440	2050
RCYD-Z14	1400	250	≥450	4.0	3285	1473	500	2890
RCYD-Z16	1600	250	≥450	4.0	3485	1473	500	3250

17 YEARS FOCUS ON MAGNETIC SEPARATOR
Ejet had been in this field for 17 years since 2006. We are the leading manufacturer in Asia. with rich experience. We had very good cooperation with famous universities, such as Shanghai Jiaotong University, Shanghai second technology University, Northeast University and scientific establishments.
20% ENGINEERS IN EJET OBTAIN MORE AND MORE NATIONAL PATENT
Engineers are accounted 20% of the total people in Ejet, the stable team keeps developing and perfect quality.
30 YEARS EXPERIENCE OF IN MACHINE DESIGNING
Some engineers had more than 30 years experience with magnetic separators and eddy current separators, we were the leading engineer for eddy current separators in China. Products are widely used in the recycling and mining industries.
3000 SETS PRODUCTS HAD BEEN MANUFACTURED
The products are widely used in mining, plastic recycling, metal recycling and E-waste recycling. And had been exported to more than 40 countries.
24 HOURS AFTER-SALES SERVICE
The contract is not the beginning of the cooperation, Ejet worries about what customers worry about. Customer service is 24 hours online. And we had a spare parts store for each customer.



More Information About Ejet Magnet
This was in 2004, when our founder, Mr. Wang, first used magnetism knowledge to make research and designed the first set eccentric pole eddy current separator in China. Thus we are fully aware of this responsibility in sorting resources field for nonferrous metal.
In the year 2006, with 25 years of magnetic experience, Ejet Magnet was Established. Keeping improvement for all kinds of magnetic separators, to provide high-quality and high-performance products is our own responsibility, moreover, offering the best solution and the most effective service is one of the higher-standard targets we are pursuing. Ejet has a strict quality control system for raw materials inspection, producing quality inspection, and machine testing.
With 4 members team, in the beginning, Ejet has grown through continuous product innovation and worldwide expansion to over 5000 square feet of manufacturing space and more than 100 employees.
The main products eddy current separators, magnetic separators, sensor sorters and AI technology machines for recycling industries had been exported to more than 50 countries.
Materials testing and machines OEM could be available for better solutions for metal recycling, plastic, glass cullet, construction waste, incineration bottom ash, Aluminum, and E-waste recycling. Also for food, chemical, and lithium battery industries.
Ejet after-sales service promises that within 15 minutes we will make a response to the customer. On the condition that some problems cannot be solved by calls or call videos, engineers are available to serve overseas.
Each Perfect Separation is EJET's commitment to you! We constantly pay attention to your separation result.
Ejet had been focused on magnetic separator design, and manufacturing for more than 17 years with rich experience. Ejet has been dealing with the construction of machines for bulk material handling.
Ejet® is a One-stop Source for Recycling Equipment used in Material Recovery Facilities, conveyors, Screening, and Magnetic Technology for all kinds of industry fields: Automotive Shredder Residue (ASR). Municipal Solid Waste. Incineration Bottom Ash. Mining Magnet.
Q&A 1. Q: What kind of metal is the eddy current separator applied to?
A: Eddy Current Separator suitable for aluminum, copper, and brass.etc non-ferrous scraps separation from non-metal materials of size >3mm.

2. Q: Which type should I use for my recycling plant?
A: In order to recommend the most suitable model, please let us know the material`s situation. Including the composition, size, handling capacity and expected separation result.

3. Q. What is the MOQ of your machine?
A: Our MOQ is 1 set

4. Q: What are the pros and cons of a concentric pole rotor compared with and eccentric rotor design?
A: The eccentric type is much more suitable for the complicated material situation, The eccentric rotor design reduces long-term wear due to heated ferrous build up, and can effectively avoid the device damage caused by impurity ferrous metal.
Exclusive the ferrous influence, the concentric type has a little bit better separation effect but must make sure no ferrous exist.

5. Q. How long is the machine warranty period?
A: the product warranty period is 12 months
For details, or for longer the machine Warranty Period.

---
