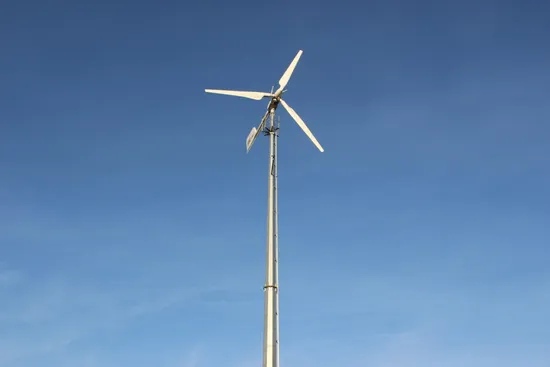

Ah-5kw Variable Pitch Wind Generator for on-Grid Solution Plan

Product Description

5kW On-Grid Wind Power System
A. System Composition

1.System principle diagram
1.System configuration list

5kw On-Grid Wind Power System Configuration
No.	Product name	Specification	Quantity
1	5kw pitch-controlled wind turbine	5kW/DC400V	1
2	Tilt-up tower & accessory	8m	1
3	ASP system	BK-500	1
4	On-Grid controller	GCB-20K	1
5	Dump load	GLL-5K-30R	1
6	On-Grid inverter	GCI-6K/DC400V/AC380V	1

B. ANE 5kW On-Grid Wind Power System Annual Output Power

Annual average wind speed M/S	3	3.5	4	4.5	5	5.5	6	6.5	7	7.5	8	8.5	9	9.5	10
Annual output power KW/H	2188	3544	5205	7097	9138	11253	13380	15474	17498	19430	21251	22950	24520	25956	27258

C. System Advantage
1. High efficiency, more profit!
This system has our patented Pitch-Controlled wind turbine, which can output 30% more electricity than normal wind turbine. Pitch-Controlled wind turbine has the following advantages,
1.1 Lower start up wind speed!
Pitch controlled wind turbine blades have the best start up angle, can be started up with 2.5m/s wind speed. Best wind power availability when the wind speed is lower then rated wind speed.
1.2 Stable running when wind speed is higher than rated wind speed
When then wind speed is higher than rated wind speed, secondary regulation starts up to make sure system have a stable output power.
Lower start up wind speed, then increase the rotating speed, then have a stable output power with a higher wind speed to make sure there is a 30% more electricity output.
2. High performance On-Grid controller and inverter
After years research and practice, we have developed high performance On-Grid controller and inverter, which are more suitable with the Pitch-Controlled wind turbine. Each unit of the system can work perfectly, so the system could output more power, and has a longer service life.
3. Safety, steady, long service life!
3.1,Leading centrifugal pitch controlled technology world-wide.
Exactly regulation: Information input source of pitch controlled mechanism is wind rotor rotating speed. System regulation is more stable, reliable and quick response and so on.
Softness regulation: Impact caused by wind speed becoming will be decreased through the pitch controlled mechanism. Regulation soft, failure rate low
Longer service life: System adopts mechanical part, floating connection, smaller fraction losses, less failure sources, better environment adaptability, Longer Service life.
3.2,ASP System (Automatic safety protection system)
ASP system, our patent product is unique protection system in China. It can control the wind turbine to run or stop by testing the environment wind speed and system working voltage. When the environment wind speed or system voltage is over the set value, it will shut up the wind turbine. When the wind speed is lower than 25m/s, it will release the brake system, wind turbine restart to work. ASP makes nobody guard come true
4. Low Working Noise!
Excellent permanent magnet power technology and aerodynamic characteristics of the blades, lower the noise level of the wind turbine. The noise level is less than 65dB.
5. Easy installation!
5.1 Easy to installation without any heavy equipment likes crane, save installation cost.
5.2 Carry and installation are not limited by landform, especially for mountain area and island
5.3 Tilt-up tower, easy to install and maintenance.
6. Easy maintainence!
6.1 Remote monitoring and control service is available, you can learn real-time running status of the wind turbine and read the output power data effectively. The remote monitoring APP for mobile phone can be available soon.
D. Technical Parameters

Model	AH-5kW
Wind rotor diameter (m)	5.6m
Blade material and quantity	Fiber glass reinforced * 3
Rated power / max power (kw)	5/6
Rated wind speed (m/s)	11
Rated rotate speed (rpm)	240
Working wind speed (m/s)	3-30
Startup wind speed (m/s)	2.5
Survived wind speed (m/s)	60
Working voltage (v)	DC400V
Speed regulation method	pitch-controlled
Stop method	Automatic electrical brake
Generator style	Three phase, permanent magnet
Wind turbine weight (kg)	400
AAA Tower height / weight (m/kg)	8/550

E. Typical Cases
1. Denmark
ANE company got the installation permission in 2009. We are the only Chinese company in Danish small wind turbine market by now. We have installed more than 300 sets ANE 5KW On-Grid wind turbine system, and also will install nearly 20 sets per month in the future.
Because of the good wind energy in Denmark, AH-5KW wind turbine could output 13000KWH power per year. The system installed before 2010 have recover the upfront cost successfully. It is benefit by the patent Pitch-Controlled system, so the output power is 30% more than normal wind turbine.
2.Australia and New Zealand
Besides Denmark, we have also installed more than 200 sets in Australian market, and also have got great profit. New South Wales installed the most quantity.

---
