automatic paper label film unwind rewind machine

Product Description

Product Description

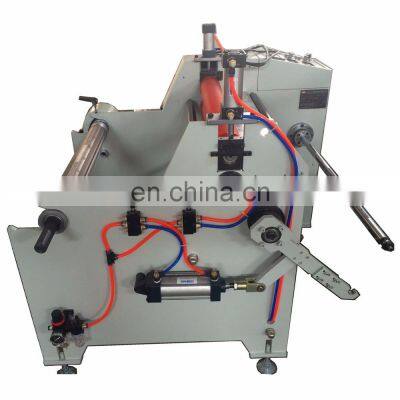

rewinder , this one it is an customized rewinder for our customer Technical Data as below :modelmax feeding width (mm)main engineer power (kw)speed (m/min)size (mm)DP -650650330--801400*1200*1300mmFeeding diameter (mm)Rewinding diameter (mm)presicion (mm)Voltage (v)76-1000mm25.4-1000mm±0.11 phase 220V 50HZMachine SizeNet weightGross weightMain Motor PowerTotal power1250*1150*1250mm150KG200KG1.1KW2KW configuration list as belowinclude 1 air shaft 3" ( unwinding part ) 1 air shaft 1 " ( rewinding shaft ) with one pneumatic for the support of rewinder shaft 2 Nip Roller Pneumatic cylinder for Nip roller gap adjustment Steel plate for cutting part 1 Frequency Controller 1 DC motor control panel 1 DC motor gear reducer 1 clockwise or counter switch 1 speed controllerMeter counterTension controller This machine is the supporting equipment for die cutting machine and sheet cutter. used for unwind and rewind roll materials. Feeding Width: 650mm 650 rewinder electric box 650 rewinder 650 rewinder NIP ROLLER AND Pneumatic unwinding part side Rewinding part side And about machine The rewinder is abel to handle materials up to 650mm width , the speed and rotation direction are all adjustable , it allows to rewind the material face in or face out , the tension arm adjusts the speed rotation : when it is down , the rewinder turns at full speed , whereas when the tension arm is up . the rewinder is idle and blocks the motor's ratation when the die cutting machine stops Working Method: positive direction, opposite direction, auto-sensing Max Speed : 70m per minute

---
