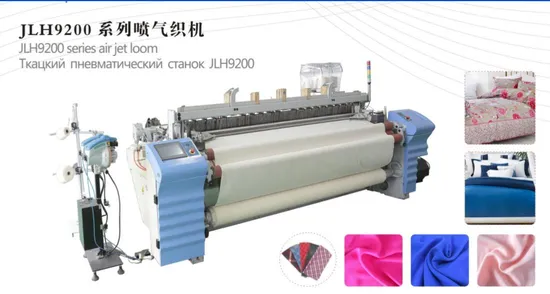

Jinlihua-9200 Tucking- in Selvage Air Jet Loom Textile Weaving Machine

Product Description

Product Description
It is our newly developped air jet loom JLH9200, same with Tsudakoma ZAX9100,but with much lower price.
JLH9200 is the most advanced high speed air jet loom with wide weaving range, stable operation, saving gas and electricity, reducing production cost and improving production efficiency. Compared with other models, it can save 20%-30% of electricity and achieve efficiency of over 90%. It is more convenient to operate when the machine is moved down.
Main Specification

Working width:	190cm 210cm 230cm 280cm 330cm 360cm
Color	2/3/4/6/8
Shedding	Tapped/Cam/Dobby/Jacquard
Let-off	Electronic type with servo motor
take-up	Electronic type with servo motor
Selvedge	leno selvedge/tuck-in device
Speed	600-1100 R.P.M

Weaving scope:high count yarn,high density,high quality fabric cloth
Raw material:combed yarn 7s-80s ,silk, polyster yarn
Respective fabric:fabric width above 280cm,to make home textile,curtain,bed sheet,quilt cover fabric width below 230cm,to make denim.
1) Solar term and gas saving -- so as to save electricity (save 20%-30%) electricity charge -- reduce the cost of cloth per meter
2) Bending and beating weft (new beating weft), the center of gravity of the machine moves downward, ensuring high speed and increasing output.
3) The rack is moved down, which is more convenient for the operator to operate, increasing the number of machines each person can see, and reducing the labor cost
4) The 9200 has a wider weaving range, and the previous models are not suitable for low-branch and high-density varieties. The 9200 breaks this limitation by taking advantage of its high speed. More in line with the customer's demand for a variety of fabric.
Detailed Photos
Product Parameters

Item		Specification	Remark
Reed width	Reed width(cm)	150 170 190 210 230 280 340 360
	Useful reed width	Reduce 0-60cm (150-230cm) Reduce 0-80cm (280cm above)
Fabric	Material & weave	Cotton Filament Rayon Plain Twill Satin jacquard
Power	Main power	2.2kw ( crank/ plain shedding) 3.0kw ( cam shedding ) 3.7kw (dobby shedding ) 4.5kw (jacquard shedding)	The data only for your reference .Power consumption is depend on reed width and shedding method.
Speed	Motor-belt pulley	RPM 550 600 650 750 850 1000 (below 230 cm, )	Standard configuration only for one option.Customer should pay extra charges for others options.
		RPM 450 550 650 750 (280cm)
		RPM 400 450 550 (340,360cm)
		RPM 350 380 410 (340, 360cm twin beam and double beam)
Weft insertion	Weft selection	Single color D double color Four color Six color
	Magnetic valve	SMC Japan	Twin nozzle per valve
	Feeder	Vibration model
		Without WPS WPS
		1 2 3 4 6
	Nozzle	Energy-saving nozzle
Shedding	Shedding method	Crank plain shedding Positive cam shedding ( Changfang niupai Staubli) Dobby shedding ( Changfang niupai Staubli) Jacquard shedding
	Heald frame	4 6 7 8 10 16 Brand :New light Japan

Packaging & Shipping
Company Profile
Established in 1973.manufacture and exporter of air jet loom,medical gauze loom,water jet loom and whole production line of cloth and medical gauze.
Depends on reliable quality and price,our product has good reputation from customer.
Our vision:Win-Win Cooperation,develop together.
Our Advantages
The company fully implemented 6S management,has access to "ISO9001:2000","CE","SGS"certification. Established in 1973.The professional R&D team has more than 40 years of practical experience in scientific research and production, providing technical support for continuously optimizing product production and improving product quality. We have established multiple offices overseas to provide customers with more convenient services.Our engineers can help customers master the use of the machine in a short time. Help customers design plant drawings and calculate the input-output ratio. Our machines are of reliable quality. Indian customers have used it for more than 9 years. Our after-sale quality guarantee time is 1.5 years,higher than peers. 7.We are very familiar with the standards of the medical industry and customer needs.And familiar with the related equipment of the entire industry, can provide customers with a complete set of services.Save customers a lot of unnecessary troubles and improve the operating efficiency of the entire project.
After Sales Service
The professional R&D team has more than 40 years of practical experience in scientific research and production, providing technical support for continuously optimizing product production and improving product quality. We have established multiple offices overseas to provide customers with more convenient services.Our engineers can help customers master the use of the machine in a short time. Our after-sale quality guarantee time is 1.5 years,higher than peers. Provide procurement and technical guidance for all equipment,plant layout and plant operations,machine maintenance and train. FAQ
Q1. How about machine quality?
A1: we control the quality under 6s management,passed ISO9001 and CE.
Our machine has worked more than 10 years in customer factory.
Our gauze machine has covered 80% market in domestic and abroad.
Q2. How about machine warranty?
A2: 1.5 years guarantee.
Over seas service is available,local service is available in Uzbekistan and Turkey.
Q3. How about delievery?
A3: Order 12 sets,delivery 30 days
Order 24 sets,delivery 35 days
Order 48 sets,delivery 40 days
Order 100 sets,delivery 60 days.
Q4. How about price?
A4: 6 sets machine,no discount
12 sets machine,1% discount
24 sets machine,2% discount
48 sets machine,5% discount
Q5. How about service?
A5: We have established multiple offices overseas to provide customers with more convenient services.Our engineers can help customers master the use of the machine in a short time.
Q6:Are you factory or trade company?
A6:We are factory with international & professional trade department.
Q7:How can we go to your factory?
A7:We will pick you up from Qingdao Liuting air port.

---
