Mingshi Plumbing Materials Underfloor Heating System Aenor Watermark Skz Cstb Wras Certified Composite Multilayer Gas Pipes PE-Al-PE Pipe

Product Description

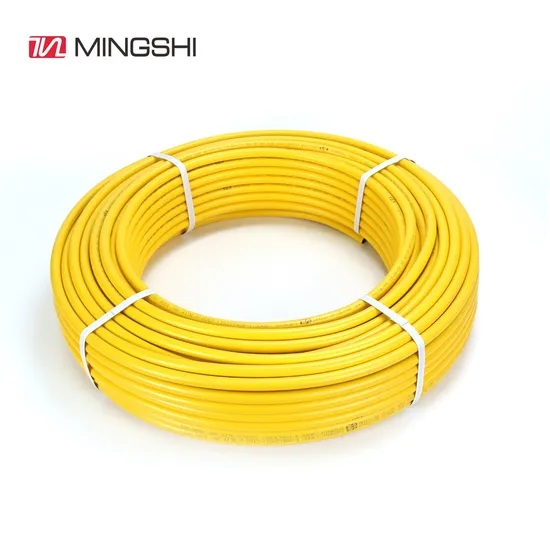

Multilayer PEX-AL-PEX/ PERT-AL-PERT Pipe
Warranty	More than 10 years
Certification	AENOR, WRAS, CSTB, ACS, WATERMARK, SKZ
Application	Water/ Gas/ Underfloor heating (UFH)
Customized support	OEM, ODM
Place of Origin	China, Zhejiang
Brand Name	OEM/MINGSHI/MSP
Model Number	S-1
Standard	ISO 21003/ other
Welding types	Buttwelding/ Overlapped
OD (mm)	15/ 16/ 18/ 20/ 22/ 25/ 26/ 28/ 32/ 40/50/63
Colors	White/ Black/ Red/ Blue/ Yellow/ Orange
Working pressure	Max. 10 bars
Working temperature	Max. 95ºC
Crosslinking degree	≥65%

1. For water(cold & hot)/gas pipe system, Composed of 5 layers:
-External Plastic/external Glue/Aluminum/internal Glue/internal Plastic
2. Certificates we have: CSTB, AENOR, WRAS, SKZ, SNAS, PHZ, SGS, WATERMAKR, STANDARDSMARK
3. Material: CONSTAB PEX
4. QC: Including spot inspection on production lines, all the tests required by each standard done in our lab rooms
5. Overlapped/buttwelding
-Spec. (mm)
16*2.0
18*2.0
20*2.0
20*2.25
25*2.5
26*3.0
32*3.0
40*4.0
50*4.5
63*6.0
6. Lead time: 15-30days
7. Main makets: Europe, Asia, Australia
8. Applications:
-Cool & Hot Water Pipe System
-Housing Gas Pipe System
-Under floor heating System
-Solar Energy & Air-conditioning Matching Pipe System
-Medical, Foodstuff & Chemical Industry Pipe System
9. Characters & Advantages:
-Wide range working temperature(-10C~95C), Hi-pressure resistance
-30% more flow than metal pipe
-50 year working life
-Non-corrosive, scale-free
-Hygiene, no oxygen permeability, no growth of Microorganism
-Non-inflammable, non-static
-Easy bending but never spring back
-Light in weight, easy to carry and store
-Few pipe fitting applying leading to little leakage
-Economical price.

International Standards
1	EN ISO 21003	Multilayer piping systems for hot and cold water installations inside buildings
2	AS 4176.2 & 3	Multilayer piping systems for hot and cold water plumbing applications- PIPES & FITTINGS
3	ISO17484-2:2009	Multilayer Plastics piping systems for indoor gas installations
International Certificates
1	AENOR	refers to EN ISO 21003,UNE-EN ISO 53007
2	CSTB	refers to EN ISO 21003
3	ACS	refers to XP P41-250
4	Watermark	refers to AS 4176.2 & 3
5	WRAS	refers to Regulators' Specification
6	ISO 9001:2015	Quality management system

Size&Tolerance
Nominal size(D x e)		14×2.0	16×2.0	18×2.0	20×2.0	25×2.5	32×3.0	40x4.0	50x4.5	63x6.0
Outside diameter (mm)		14	16	18	20	25	32	40	50	63
Tolerance of Outer diameter (mm)	Min	14	16	18	20	25	32	40	50	60.6
	Max	14.3	16.3	18.3	20.3	25.3	32.3	40.4	50.5	63
Inside diameter(mm)		10	12	14	16	20	26	32	41	51
Tolerance of Inner diameter (mm)	Min	9.9	11.9	13.9	15.9	19.9	25.9	30.9	39.4	49.3
	Max	10.2	12.2	14.2	16.2	20.2	26.2	31.9	40.8	50.8
Pipe thickness (mm)		2	2	2	2	2.5	3	4	4.5	6
Tolerance of pipe thickness (mm)	Min	2	2	2	2	2.4	2.9	4	4.5	6
	Max	2.25	2.25	2.25	2.25	2.7	3.2	4.6	5.2	6.8

---
