Professional Conveyor Belt Splicing Machine with High Working Efficiency

Product Description

Our Advantages:
1. More than 30 years experience in designing & manufacturing of rubber machines.
2. Jerry-build & inferior quality are never allowed.
3. Powerful technical team for customized service & professional oversea technical guide.
4. Strong processing capability for the most efficient machine delivery.
Application Fields:
1. Steel cord conveyor belts' splicing/repairing
2. Fabric core conveyor belts' splicing/repairing

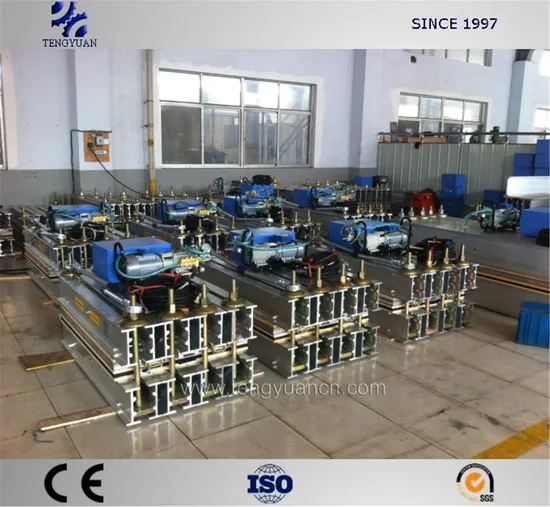

ZLJ-1000X830 conveyor belts splicer, conveyor belts splicing machine, conveyor belts splicing press
Machine Usage:
Conveyor belt splicing presses are are normally used for splicing 2 short conveyor belts into one long conveyor belt. We can design any size of non-standard splicing press as per specified requests.
Machine Introduction:
1. Our conveyor belts splicing machine is made of high strength aluminum alloy.
2. Common power supply, temperature uniform, with a fully automatic electronic control box, pressure systems supply 1.5 ~ 2MPa uniform pressure, easy to operate, reliable, light weight handling, you can complete a variety of conveyor belts splicing work, the splicing strength can reach the original belts 90 % or more.
3. Widely used in metallurgy, mining, cement, power plants, ports, building materials, chemical industry, realizing a variety of conveyor belt joint vulcanizing and repairing.
Machine Features:
1. With light-weight and easy to operate and move.
2. Quick hot plate heated with even temperature rising.
3. Waterproof: can be used in damp or water environment.
4. Automatically temperature control system, temperature adjustable 0-199ºC.
5. Automatic control temperature, heat preservation. Technical Paramters:

Model	Applied Belt Width(mm)	Motor Power(KW)	Dimension(LxWxH)(mm)	Weight(KG)
ZLJ-800x830	800	11.2	1280x830x630	650
ZLJ-1000x830	1000	14.1	1480x830x630	700
ZLJ-1200x830	1200	16.5	1680x830x710	900
ZLJ-1400x830	1400	18.6	1930x830x760	1100
ZLJ-1600x830	1600	21.1	2140x830x800	1320
ZLJ-1800x830	1800	23.3	2300x830x850	1480
ZLJ-2000x830	2000	25.6	2600x830x950	1860

Our Service: 1. Our engineer team can design customized machines for you and send the drawings for confirm.
2. The wires' connection from control box to operation box is finished before delivery. The user only needs to connect the outside wire to the controlling box. 3. Each machine is tested running with load at our factory before delivery to guarantee each parts working well.
4. Foundation drawings, detailed machine assembly drawings & parts drawing, user guide and maintenance manual will be supplied before the delivery.
5. Custom clear documents required in destination port, such as B/L, commercial invoice, packing list, insurance policy, C/O will be supplied once upon the delivery.
6. Oversea technical support can be offered as per request.
Our Package & Delivery:
FAQ:
1. Delivery time of the rubber machines?
Normally it needs about 25 days to 3 months according to the ordered machines' size and quantity.
2. What does your factory do regarding quality control?
We have the most professional engineer team to design the correct machines at the beginning, equip with the most advanced processing device to process the machine parts during the production period and finally arrange the most experienced assembly workers to assemble and check the final machines to 100% guarantee the superior quality and stable performance of each machine.
3. How long is your machines' warranty period?
The warranty period for our machines is one year from the day of normal working at the user plant.
4. Are you able to give installation and commissioning overseas? How long time will it take?
Yes, we can supply overseas service and technical support at the user plant with the charge of the required cost.
Small machines normally takes within 1~3 days.
Large machines normally takes about 30 days.
5. How can we go to your side for a factory visit?
We are located in Qingdao City, Shandong province, China. The nearest airport is Qingdao liuting airport.
Please advise us your time schedule in advance for us to pick up you at the airport.
Note: the customized machines can be specially designed for the customers as per their requests.

---
