Leather Sofa Making Machinery Shoe Making Machine Splitting Machine for Shoe

Product Description

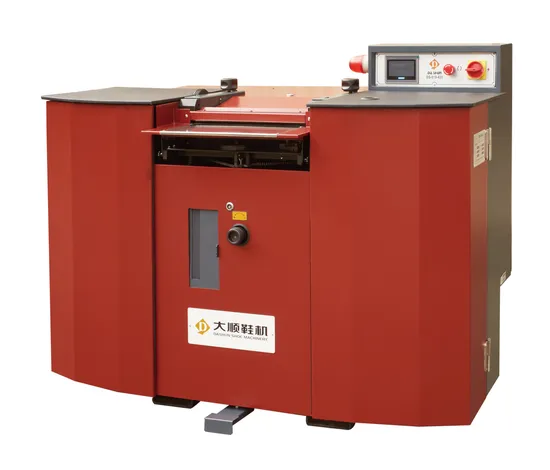

DS-818 Bandknife Splitting Machine for shoe
This machine is suitable for the leather splitting and skiving for shoe and leather products.
The thickness of the split segments can be adjusted by the handwheel.
The number of thickness shows in digital display, which is easy to see and with high precision.
The minimum thickness split can reach 0.15mm with an accuracy of ±0.05mm.
The alarm light will flash when any door or lid is not closed in place, the dustbin is full, the bandknife wears out to be narrow, or the electric motor is overheated.
Under such circumstances, the machine will stop and remind operator with alarm beeping, which ensures high security.
The leather feeding speed is stepless forwarding.
The speed in digital display can be regulated according to requirement
The knife sharpening adjustment is done by single handwheel.
The upper and lower grinding wheels run synchronized for grinding.
Along with the automatic reset of the bandkife during the grinding process,
the blade geometry of the bandknife remains unchanged, which ensures the best splitting result.
To meet different splitting requirements, there are four models for selection - 320mm, 420mm, 520mm, and 620mm.

I. Main Usage
DS-818 Band Knife Splitting Machine is used mainly to split the leather material to be even or thin. The maximum thickness of splitting material can be 8mm, and the maximum width is 420mm. When the leather material purchased for manufacturing the leather products ,such as leather shoes , case and bag ,etc. , is uneven or need splitting to be thin , this machine can be used to meet the above demands.

II. Characteristics
The machine is excellent in that it has low power consumption, high accuracy, high efficiency, convenience operation, sound security, elegant appearance and so on. The structure of machine is mechanical with electronic controller, and equipped with Micro-computer CMOS chipset to keep watching on the working condition of each parts, for instance: Safety protection switch , the examination of waste material box , abrasion of knife, overheating of motor, etc., all can be displayed on the Control Panel by measuring , which can remind operators to pay attention to the malfunctions. Due to above advantage ,the machine can be serviced stably and expediently for long life. The machine is very suitable for proceeding of the leather pieces and artificial leathers , so it is a perfect equipment for widely manufacturer of leather products .

III. Technical Parameters

Total Power	3.3Kw
Main Motor	1.1Kw
Dusting Fan	0.55Kw
Knife Grinding Motor	0.75Kw
Feeding Motor	0.55Kw
Knife Grinding Dusting Fan	0.25 Kw
Minimum Splitting Thickness	0.1mm
Splitting Precision Allowance	±0.05mm
Maximum Splitting Width	420mm
Efficiency	23m/min

---
