US$3,000.00-15,000.00
|
1 set
(MOQ)
|
Basic Info.
Feature
Automatic Weighing
Filling Valve Head
Single-Head
Filling Nozzle Size
16mm, 19mm, 25mm
Filling Material
50-90 Drying Down
Installation Size
4000*4000mm
Daily Workload
7000-18000 Times
Type
Weighing-Type Filling Machine
Transport Package
Wooden Box
Specification
Installation size: 4000*4000mm
Production Capacity
100 Sets/Month
Product Description

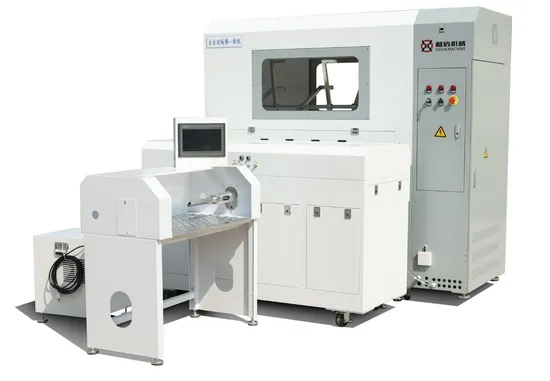

One Head Six Scales Automatic Down Filling Machine Product Parameters
| Model | R1-6
|
| Filling nozzle size(mm) | 16mm 19mm 25mm |
| Filling material | 50-90 Drying down |
| Single weighing range | 0.5-30g (down) |
| Single Error | 0-0.1g |
| Host Shape Size(mm) | 2000*1100*1900 |
| Weighing Box Shape Size(mm) | 1600*800*1300 |
| Installation Size(mm) | 4000*4000 |
| Filling port | 1 |
| Cycle number | 6 |
| Accuracy class | 0.01g |
| Machine weight | 880kg |
| Power | 4.5KW(AC220V) |
| Daily workload | 7000-18000 times |
| Automatic iron removal function | Support |
| More refunds and less supplements | More refunds and less supplements, accurate and saving down. |
| Apportion big grams | Can fill a larger range. |
| Fragment supplement function | One click immediate filling function after missed filling. |
| Automatic down returning function | Change the gram weight and simplify the operation. |
| Automatic constant humidity function | Automatically control the humidity of down inside the machine. |
| USB data input | USB data input |
Electrical parts
| Name | Brand and Origin |
| PLC | Delta/Xinje |
| Sensor | HBM(Germany) |
| Regulated power supply | MW(Taiwan) |
| Controller | Delixi |
| Pneumatic parts | AirTAC |
| Pressure Regulating Valve | Japan SMC/AirTAC |
| Touch Screen | MCGS |
Certifications
Company Profile Our company is a national high-tech enterprise and has its own invention patents and multiple software works. The company has its own registered trademark and export authority, and has passed the international European Union CE certification.
Enterprise Vision: Technology Hexin Serving the World
Enterprise Spirit: Innovation for Practicality
Business philosophy: High efficiency and energy saving, create more value for customers.
>>
