Heavy Duty Grinding Head Move Type Surface Grinder M7160 600X1600 More Powerful

Product Description

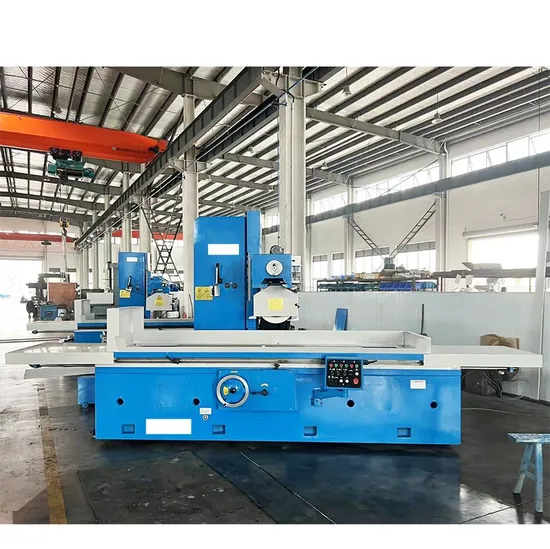

Surface Grinder (M7160)
Heavy duty grinding head move type surface grinding machine
We adopt speical type plain bearing at the spindle nose.
Worktable longtidutinal movment and grinding head cross movement is
support by hydraulic system
They are steplss and variable speed.

spECIFICATION		HsG20060 (M7160X2000)
size ofworkatable(L W H)mm		2000X600
Max. worktable longitudinal movement mm		2100
Max cross movement of grinding head		640
Max distance from grinding wheel edge to worktable surface mm (without chuck)		600
Abrasive wheel dim(D d w)mm		400X50X203
speed of grindwheel r/min		1440
spindle motor	power Kw	11
	speed r/min	1400
vertical movment of the grinding head by hand wheel	per strock mm	0. 1
	per revelotion mm	1
Rapid lifting motor	power Kw	0.37
	speed r/min	1450
Oil pump motor	power Kw	5.5
Gross/net weight	kgs	7800/8500
siz of package	mm	5300X1850X2480

DETAIL PHOTOS
WORKPLANT
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
