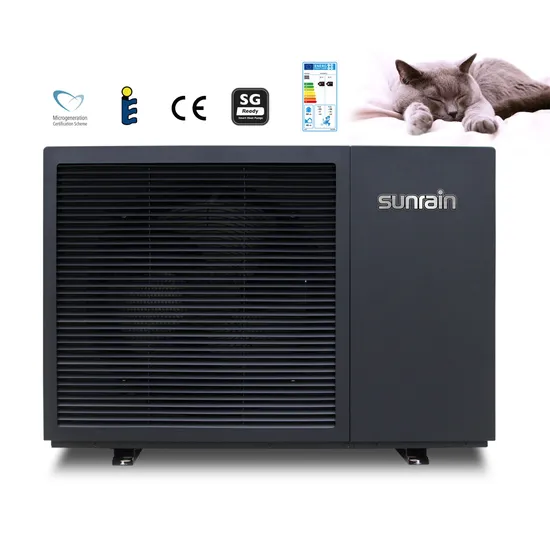

Sunrain a+++ R290 Sg Ready Monoblock Air to Water Heat Pump

Product Description

Detailed Photos
Product DescriptionProduct Features
1). R290 refrigerant, low GWP (GWP=3).
2). Energy class: A+++.
3). Stable operation at -25ºC
4). Power Detection Function
5). SG-READY Function
6). 5-Inch TFT True Color Screen
7). 5G/2.4G Compatible WIFI Module
8). Dual Temperature Zone
9). Reserved RS485 Communication Port
10). Linkage Control with PV Function
11). Outlet water temperature up to 75ºC.
How The System Works
R290 Monoblock Heat Pump for House Heating, Cooling & Daily Hot Water Supply
Sunrain R290 Monoblock air to water heat pumps, with self-developed Controllers and Full DC Inverters, are designed to bring comfort with daily hot water, house heating, and cooling. Our R290 Monobloc Air to Water Heat Pumps come with a smart controller, ERP A+++ energy rating, low noise operation, R290 refrigerant, smart control, and intelligent defrosting. Moreover, these cost-effective inverter heat pumps are highlighted with a 5-inch colorful touch screen, -30°C EVI low ambient temperature operation, and a click remote software update.
Green R290 Refrigenrant
Experience sustainable style with our Keymark approved R290 EVI monoblock DC inverter heat pump - powered by low GWP R290 refrigerant and designed to green your customer's life.
Super Low Noise
Heat Pump Machine Operates at a Whispering 48 dB
Everything In ONE APP TFT Screen with multiple languages
Full DC Inverter TechnologyDC INVERTEER COMPRESSORIn contrast to AC drive technology, DC inverter speed technology often regulates compressor control process more accurately, increasing transmission efficiency and lowering compressor noise and energy consumption.DC INVERTER FAN MOTORDC fan moto control enables super-quiet fan operation and minimizes power consumptionELECTRONIC EXPANSION VALVEIn order to maintain the stability of the refrigeration the system, and electronic valve can quickly alter the flow of regrigerant. WATER PUMPThe built-in water pump connects to the water inlet of the machine to make water flow in the pipe. PLATE HEAT EXCHANGERHeat exchange is carried out through the plates, which has the advantage of high heat exchange efficieny Product Parameters

Model			BLN-006TC1	BLN-012TC1	BLN-018TC1	BLN-012TC3	BLN-018TC3
Rated voltage / Frequency			220-240V~ / 50Hz			380-415V/3N~/50Hz
Heating¹	Capacity	kW	2.92-9.10	4.30-15.20	7.24-21.90	4.30-15.20	7.24-21.90
	Input Power	kW	0.61-2.11	0.87-3.73	1.50-5.88	0.87-3.73	1.50-5.88
	Input Current	A	2.80-9.25	4.02-16.38	6.86-30.25	1.78-6.04	2.82-9.16
Heating²	Capacity	kW	2.99-8.16	4.25-14.55	6.36-19.45	4.25-14.55	6.36-19.45
	Input Power	kW	1.03-2.92	1.45-4.28	2.15-6.85	1.45-4.28	2.15-6.85
	Input Current	A	4.57-12.79	6.71-18.80	9.84-30.12	2.84-6.78	3.71-10.60
Cooling	Capacity	kW	1.38-5.70	3.65-11.04	4.55-17.20	3.65-11.04	4.55-17.20
	Input Power	kW	0.67-2.44	1.12-3.97	1.85-7.31	1.12-3.97	1.85-7.31
	Input Current	A	3.06-10.27	5.18-17.44	8.47-32.1	1.97-6.30	2.99-11.26
SCOP (Water Temp. At 35ºC)			4.98	4.90	4.91	4.90	4.93
SCOP (Water Temp. At 55ºC)			3.84	3.86	3.94	3.86	3.93
Rated Input Power		kW	3.5	5.40	7.50	5.85	10.5
Rated Input Current		A	15.0	25.0	35.0	10.0	17.0
Refrigerant Type/Charge/GWP		.../kg	R290/0.55/3	R290/0.90/3	R290/1.4/3	R290/0.90/3	R290/1.4/3
CO2 Equivalent		/	0.0017t	0.0027t	0.0042t	0.0027t	0.0042t
Operation Pressure(Low Side)		MPa	0.8	0.8	0.8	0.8	0.8
Operation Pressure(High Side)		MPa	3.0	3.0	3.0	3.0	3.0
Maximum Allowable Pressure		MPa	3.0	3.0	3.0	3.0	3.0
Electrical Shockproof		/	I	I	I	I	I
IP Class		/	IPX4	IPX4	IPX4	IPX4	IPX4
Max. Outlet Water Temp.		ºC	75	75	75	75	75
Operating Ambient Temp		ºC	-25~45	-25~45	-25~45	-25~45	-25~45
Water Piping Connections		inch	G1	G1	G1-1/4	G1	G1-1/4
Rated Water Flow		m³/h	1.0	2.06	3.10	2.06	3.1
Water Pressure Drop		kPa	20	20	55	20	55
Min/Max Water Pressure		MPa	0.1/0.3	0.1/0.3	0.1/0.3	0.1/0.3	0.1/0.3
Noise Level		dB(A)	48	50	55	50	55
Net Dimensions ( L×W×H )		mm	1187×418×805	1287×448×904	1187×488×1456	1287×448×904	1187×488×1456
Net Weight		kg	110	123	184	123	184
Rated Test Conditions: Heating¹: Ambient Temp 7ºC/6ºC(DB/WB),Water-In/Out Temp 30ºC/35ºC Heating²: Ambient Temp 7ºC/6ºC(DB/WB),Water-In/Out Temp 47ºC/55ºC Cooling: Ambient Temp 35ºC/24ºC(DB/WB),Water-In/Out Temp 12ºC/7ºC

CertificationsPackaging & Shipping
Exhibition and Fair
Company Profile
Sunrain Group is a Chinese listed company that focuses on the research, development, production, and sales of air source/air to water heat pump hybrid water heaters, Monoblock air source/air to water heat pumps, Swimming pool air source/air to water heat pumps, Commercial type air source/air to water heat pumps, R290&R32&R410A&R134A air source/air to water heat pumps and CE&RoHS&StandardMark&WaterMark approved air source/air to water heat pumps. We cater to the diverse needs of our international clients, offering standardized or customized solutions. With over 2000 employees, we distribute our products to more than 80 countries and regions worldwide.
FAQQ1 Are you a manufacturer?
A: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D, production, sales, and service supply.
Q2: What is your main product?
Answer: Our main products include DC variable frequency heat pumps, air source heat pumps water heaters, all in one heat pumps, swimming pool heat pumps, and EVI heat pumps in cold areas.
Q3: How do I place an order?
Answer: Please send us an inquiry or contact us through online services; After receiving your inquiry, we will reply to you
Catalogs, quotations, and other information you need. Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European standard heat pumps under your brand according to your special needs. Q5: Can I apply to become your heat pump distributor/distributor?
A: We are currently looking for more heat pump distributors/distributors worldwide, who can distribute our heat pump products in local countries/regions. Q6: I need to buy in large quantities. Can you provide a sample service?Yes, we can provide sample service, and we have engineers to help you solve installation problems

---
