Customizable Hydraulic Oil Cylinder Testing Jack for Pile Foundation Inspection Building

US$100.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YXRG
Structure
Hydraulic Jack
Capacity (Load)
200t-1200t
Power Source
Electric
Max Height
201-250mm
Certification
ISO 9001:2008
Condition
New
Non-Standard
Customizable
Transport Package
Wooden Box Packaging
Trademark
YueZhenQin
Origin
China
HS Code
8425421000
Production Capacity
100000000

Product Description

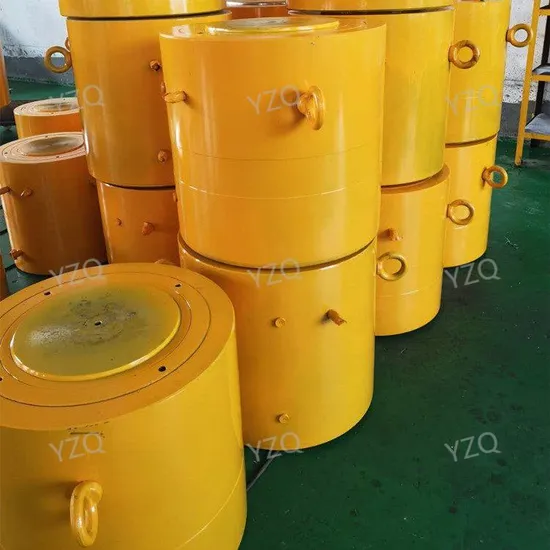

YXRG series pile foundation inspection hydraulic cylinder is double acting, large tonnage, oil pressure return, this advanced product is developed especially for the industries of foundation settlement test, static pile loading, pile foundation inspection, and so on. It adopts special seal structure, has high strength cylinder block, so it has the characters of good pressure maintaining, high safety factor, long lift etc.
Can be customized by your requirement.
Model Tonnage
(T)
Bore Diam
(mm) E
Out Diam
(mm) D
Rad Diam
(mm) F
Stroke
(mm) L
Coll Height
(mm) A
Extende Height
(mm)
Rated Pressure
(Mpa)
Weight (kg)
YXRG200-200 200 200 273 150 200 400 600 63 130
YXRG200-250 250 450 700 145
YXRG320-200 320 250 325 180 200 435 635 63 215
YXRG320-250 250 485 735 240
YXRG400-200 400 280 377 200 200 465 665 63 300
YXRG400-250 250 515 765 330
YXRG500-200 500 320 426 250 200 488 688 63 436
YXRG500-250 250 538 788 482
YXRG630-200 630 360 490 280 200 536 736 63 693
YXRG630-250 250 586 836 751
YXRG800-200 800 400 550 320 200 585 785 63 974
YXRG800-250 250 635 885 1035
YXRG1000-200 1000 450 610 360 200 620 820 63 1337
YXRG1000-250 250 670 920 1430
YXRG1200-200 1200 500 670 380 200 640 840 63 1647
YXRG1200-250 250 690 940 1752
