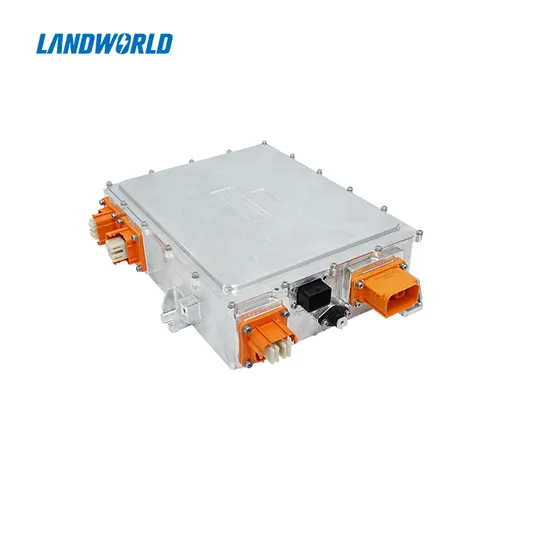

Product Features: Body Size: 350x214x197mm Weight:≤18KG Cooling method:Liquid cooled, flow rate≥8L/min IP rating:IP67 Support inverter function Support on-line upgrading and fault diagnosis Compatible with single and three phase charging station Full digital software design, Redundant protection function design Main Technical Parameters
| Items | Technical Specification | Remarks |
| | DCDC | OBC | |
| Nominal output power | 2.5kW | 6.6kW | |
| Input Voltage | 250-450Vdc | 90-264Vac | |
| Output voltage range | 14Vdc | 200-450Vdc | |
| Voltage accuracy | ±0.2Vdc | ±1% | |
| Output current | 180A | 20A | |
| Current accuracy | ±1% | ±1% | |
| EFF | ≥94% | ≥94% | |
| Voltage ripple | ≤500mVPK-PK | \ | |
| Inverter features |
| Input voltage range | 200-450Vdc | |
| Output voltage | 220Vac(±5%)/50Hz | |
| Power | 6.6kVA | |
| Efficiency | ≥93% | |
| Output harmonics(THDv) | <3%(LINERAR LOAD) | |
| Dynamic response | 60ms(LINERAR LOAD) | |
| Leakage current protection threshold | ≤30mA | |
| Other Electrical Features |
| Operating temp. | -40-80ºC/-40-65ºC | Coolant inlet temperature |
| Low voltage wake-up | 12/24Vdc(200mA WAKE_UP signal)/CAN,CC/CP,AC | Wake up BMS/VCU |
| emc | GB/T 18655-2010,EN 55022 | |
| Interface | CC,CP,CC_Out,European standard and American Standard | |
