| Absolute Maximum Rating |
| Parameter | Rating | Unit |
| Supply Voltage | 24V~48V(DC Jack) | V |
| Operating Temperature Range | -40 to +70 | ºC |
| Storage Temperature Range | -45 to +105 | ºC |
| Operating Humidity Range | 5 to +95 (non-condensing) | % |

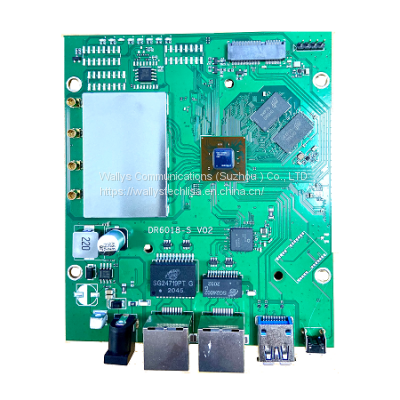

| Hardware Specifications |
| Symbol | Parameter |
| CPU | Qualcomm-Atheros IPQ6010 |
| CPU Frequency | Quad-core ARM 64 bit A53 @1.8 GHz processor |
| System Memory | 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design |
| Ethernet Port | 1 x 1Gbps Ethernet Ports & POE 1x 1Gbps Ethernet Ports |
| NGFF Slot | M.2 (NGFF) “E Key” Socket with MiniPCIe 3.0(For WiFi Module) |
| SD Card Slot | 1x SD Card Slot(Option) |
| USB /header | 1x USB 3.0 Port(Option) |
| POE | 24V~48V passive POE/Active POE(Suport 802.3bt) |
| DC Jack | 24V~48V power supply |
| LED header | 2.0 pitch pin header |
| Serial Port | 1x Serial Port 4 Pin Connector |
| Wireless | On-board 2x2 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 23dBm per chain On-board 2x2 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 20dBm per chain 4 x MMCX Connectors |
| Nor Flash | 8MB |
| Nand Flash | 256MB |
| DDR | 256MB~512MB |
| Dimension | 125mm x 105mm x 20mm |
