Zk5140 CNC Drilling Machine, High Precision Vertical CNC Drilling Machine Zk5150

Product Description

CNC Drilling Machine ZK5140 and ZK5150
1. Zk5140B and Zk5140B-1 vertical cnc drilling machine are universal drilling machine.the max drilling diameter is 40mm.
2.Zk5150B and Zk5150B-1 vertical cnc drilling machine are universal drilling machine.the max drilling diameter is 50mm.
3. The table of Zk5140B, Z5150B is fixed and The Zk5140B-1, Zk5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have
cross table ,the table can manual feeding on cross ,longitudinal and lifting.

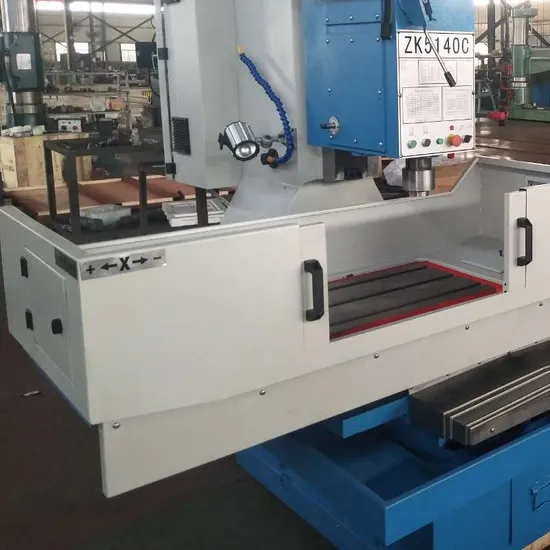

Model	Unit	ZK5140C
Max drilling diameter	mm	φ40
Feed resistance	n	16000
Max torque of spindle	N.m	350
Spindle hole taper		MT #4
Power of spindle motor	kw	3
Spindle speeds range	r/min	31.5-1400/12 steps
X/Y/Z Fast moving speed	mm/min	8000/8000/7000
Up and down stroke of headstock	mm	470 (manual)
Travel(X/Y/Z)	mm	850/400/250(Auto 240)
Distance from spindle end to table	mm	0-800
Table size	mm	1000x550
Positioning accuracy	mm	0.05(0.04)
Repositioning accuracy	mm	0.02(0.015)
Weight	kg	2700
Overall size(LxWxH)	mm	2060x2160x2550

Model	Unit	ZK5150
Table size	mm	1000X545
Area of worktable	mm	850X400
Max drilling diameter	mm	φ50
T-slot width/quantity	mm	18/3
Spindle hole taper		MT #5
Spindle speeds	r/min	31.5-1400/12 steps
Power of spindle motor	kw	3
Vertical travel of drilling head (manual)	mm	360
Travel(X/Y/Z)	mm	850/400/240
Distance from spindle nose to worktable	mm	65-665
Distance from spindle center line to column	mm	335
Rapid travel rate X/Y/Z	m/min	15/15/3.5
CNC system		GSK system
Max torque of spindle	N.m	350
Max feed resistance	N	12000
Positioning accuracy	mm	±0.025
Repositioning accuracy	mm	±0.015

Model	Unit	ZK5180C
Worktable size	mm	1000x545
Max. drilling diameter	mm	80
Worktable area	mm	850x400
T-slot width x NO.	mm	18x3
Spindle taper	No	Morse 6#
Spindle speed	rpm	40-570(9 steps)
Main motor power	kw	5.5
Spindle box stroke (manual)	mm	300
Spindle stroke	mm	240
Moving range	mm	850x400x240x184-724
Distance from spindle end to worktable	mm	375
Distance from spindle center line to column guide surface	mm	15/15
Fast moving speed X/Y/Z	m/min	1.3
Feed rate (Z axis)	Mm/min	600
CNC system
Servo motor power	kw	1.32/1.32/3.5
Servo motor torque	N.m	10/10/22
Spindle torque	N.m	800
Max. feed resistance	N	30000
Positioning accuracy	mm	0.25/300
Repeatability	mm	0.02/300
N.W./G.W.	T	3.1/3.5
Machine size(LxWxH)	cm	188x159x236
Package size(LxWxH)	cm	236x249x258

---
