Agricultural Machinery Coconut Screw Oil Extraction Press Spiral Screw-Type Oil Expeller

Product Description

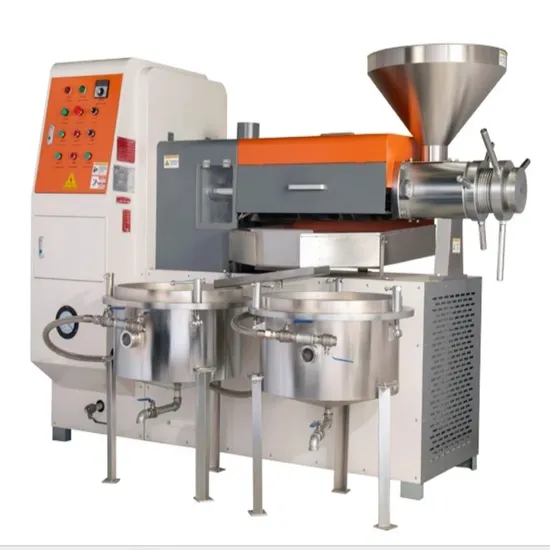

Newly Upgraded 6YL-Series Oil Press NJ are committed to providing you with high-quality, efficient, and durable oil press machines that meet and exceed your expectations. Try our upgraded oil press machine today and experience the difference! The oil press machine is composed of five major parts: the frame, the housing, the press cage part, the control system, and the vacuum filtration system. The frame is welded by the large CNC milling machine to ensure that the flatness of the frame reaches the standard and the coaxiality of the press cage on the same plane, so as to realize the high precision assembly. The protective cover adopts plastic spraying process, and the carbon steel part is partially sprayed with orange and gray colors to make it beautiful and durable. All parts in contact with raw materials, oil and cake are made of stainless steel, such as the funnel of the feed inlet, the oil pan, the discharge port, and the oil separation groove. The squeeze cage part is composed of front, middle and rear brackets, small support brackets, heating device, squeeze screw and screw squeeze components. The squeeze strips form a cavity, filled with squeeze snails, and fixed by the reinforcement ring. The pressing screw assembly also includes parts such as adjusting screws, nuts and handles that can be used to adjust the cake thickness. The electric control cabinet includes air switch, AC contactor, temperature controller, automatic circuit protection device and other components. The vacuum oil filter part is composed of vacuum pump, steam drum, oil filter drum, stainless steel pipeline and other assemblies.The two oil barrels work in turn, and there are bolts on them to switch the direction automatically.
Specification

Model Parameters		6YL-100ZD II	6YL-120ZD II	6YL-150ZD II
Dia of Squeezing Bolt		Φ 98mm	Φ 120mm	Φ 146mm
Rotating speed of squeezing bolt		49r/min	49r/min	42 r/min 63 r/min
Dia of internal circle of pressing chest		Φ99mm	Φ121mm	Φ147mm
Power	Main power	7.5KW	11KW	30KW
	Vacuum filter	1.1KW	1.1KW	1.5KW
	Heater	3.5KW	4KW	4.7KW
Capacity(rapeseed)		150-260kg/h	260-400kg/h	300-500kg/h
Weight		855kg	980kg	1100kg
Size(mm)		2020*1315*1570	2060*1345*1570	2700*2910*1635

The multifunctional oil press is suitable for pressing more than 20 types of oil crops such as rapeseed, peanuts, soybeans, sesame, sunflowers, camellia seeds, walnut kernels, corn germ, etc.

---
