Ribbon Fiber Thermal Stripper Wf-17 Hot Jacket Stripper with Li-Battery Supporting Fiber Thermal Stripper

Product Description

WF-17 Ribbon Fiber Thermal Stripper Hot jacket stripper with Li-battery supporting more than 300 cycles
OTHERS

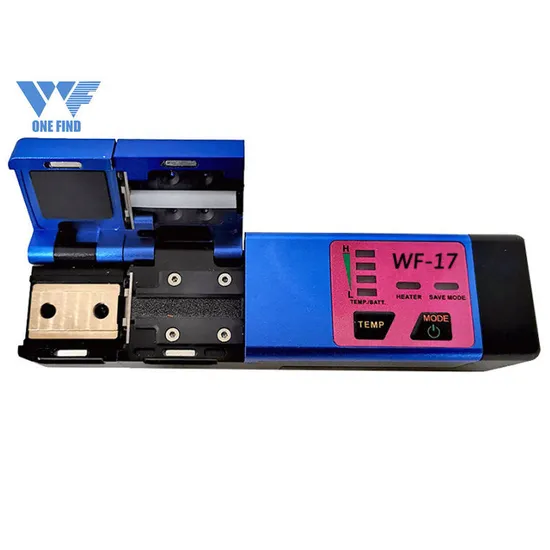

WF-17 Thermal Stripper is a newly developed hand-held thermal stripper, specially designed for nondestructive thermal stripping of the jacket of single fiber and ribbon cable up to 12 fibers. A good and reliable tool for ribbon fiber splicing work.

1.Apply to single and ribbon (up to 12 cores) fibers
2.4 seconds fast heating, 4 levels temperature optional
3.Normal and Power saving modes Optional
4.Pluggable Li-battery, support more than 300 cycles
5.Small size and light weight, convenient to carry
6.Rugged and durable for any tough environment
7.Easy to operate and maintain, near zero failure.
8.Reach CE, ROHS international standards

Fiber material	Silica glass
Coating material	UV curable resin
Coating diameter	Single core: 0.25~0.4mm; 2~12 ribbon fiber: 0.3~0.4mm
Cladding diameter	125µm
Coating stripping length	Max 30mm
Fiber types	Single fiber, ribbon fiber
Fiber holder type	FH-2,FH-4,FH-6,FH-8,FH-10,FH-12,FH-250,FH-900,FH-U (for 250/900µm fibers)
Heating mode	Normal mode, power saving mode
Temperature setting	Normal mode: 80, 95 110, 130. Power saving mode: 70, 80, 95, 110.
Typical heating time	Normal mode: 4~5secs Power saving mode: 5~6secs
Battery capacity	800mAh Li-battery. Support more than 300 cycles stripping once fully charged
Power supply	AC adapter, input: AC100-240V(50/60HZ), output: DC12V-1A
Operation environment	Altitude: 0-5000m, Relative humidity: 0-95%, Temperature: 0 ~ +40 , Wind speed: 15m/s maximum
Dimension/Weight	138mm (L)×34.5mm (W)×35mm (H) /300g(inlcuding battery)

1. Beijing W&F technology Co.,LTD is founded in 2006.We locate in Beijing- the capital of China. More than 15 years professional experience in fiber optic euqipments field makes us pay more attention to the quality.
2. Our brand ONEFIND are selling all over the world.
3. Life long technical support, quick feedback to any problem.
4. We can also provide OEM service.
5. "Satisfaction of the clients is service standard" --is our marketing service strate.
