Px-Bfc80 Automatic Fruit Jam Glass Jar Sauce Piston Pump Smart Filler Tomato Paste Filling Packing Line

Product Description

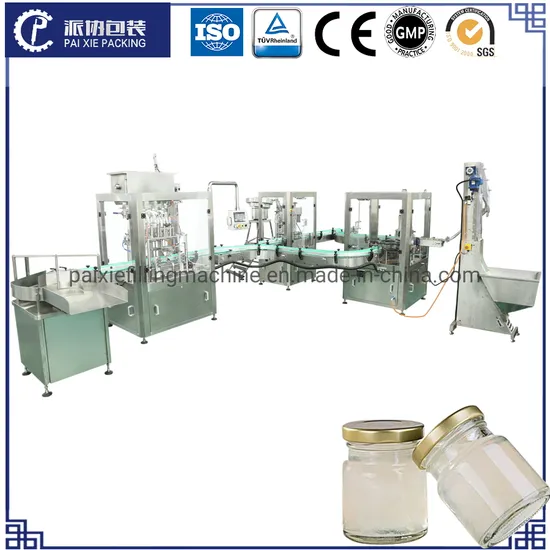

Layout appearance
Product Description The latest PX-BFC80 packaging line is suitable for small glass bottles, plastic bottles and other packaging processes. It is mainly composed of bottle sorting + filling + capping + labeling + cartoning and other parts. The whole line is controlled by PLC, all parameter adjustments are adjusted by the touch screen, and the aviation plug is applied to the circuit connection, you do not need to supply power to each machine separately. In terms of manual protection, we use a 150mm wide protective cover, equipped with an emergency stop sensor switch, which ensures the safety of labor, and the plexiglass cover ensures the safety of product production.
Parameters

Model	PX-BFC80
Component	Bottle feeding +filling +capping +labeling +cartoning +packing table
Control	PLC+HMI
Printing	Ribbon printer
Label number	One label round labeling
Label detection	Red lion photocell
Connect	Avoation plug
Work voltage	110/220/380V 50/60HZ
Air presstion	0.6MPA
Accuracy	±0.5%
Power	2-3.5KW
Driving	Servo motor
Direction	Left -right
Pump volume	100-300ml
United size	1200*900*2000mm
Weight	500kg
Material	Contacting parts SS304 with Hairline Finish
HMI	7.5" Color Touch Screen Control
Protection	Comprehensive Safety Alarm System
Speed controller	Variable Speed Controls
Detecting system	Vial Detector & Counter
Label size	Width : 20-180mm Length : 30-350mm
Label color	Transparent /colorful label
Label application principle	Rolling labeling /positioning labeling
Labeling driving	Servo / steeper system
Labeling position	Round /square/top/single /double sides

You may be worried about 1- How can I fill so many formats my bottles with the machine perfectly without complex adjusment? 2- How can I understand your quality? I do not want any kinds bad machine which failed to live up to my investment.3- How can I know your machine life? It looks always beautiful but only in your room. 4- How can I install such a big long machine by myself? It looks never easy at all.5- How can I recognize the real difference in chinese market? So many suppliers quoted me every day!!!6- What should I do if the machine is broken? Who is gonna to help me?
What PAIXIE do Compared with traditional machinery, PAIXIE smart filler has characters below which are beneficial to each customer operation experience: 1- With servo driving , operator just edit the filling parameter on HMI to realize all kinds products packing.2- 150mm width SS304 protection frame which equiped with induction switch is able to stop machine whenever operator open the plexiglass door which is good for human protection.3- PAIXIE'S machines are all equiped with scale rules for diffeferent kinds bottle replacing , which is convenient for date recording and save the time in adjusting.4- All PAIXIE'S machine are made of SS304+SS316 which avoiding pollution perfectly, protect the quality of customer's product. 5- Machines are delivered as whole which solving the stress of after-sale installation for customer . PAIXIE'S technicians are standing by all time for on-site service
Bottle feeding table:
Filling and capping station:
Labeling station:

---
