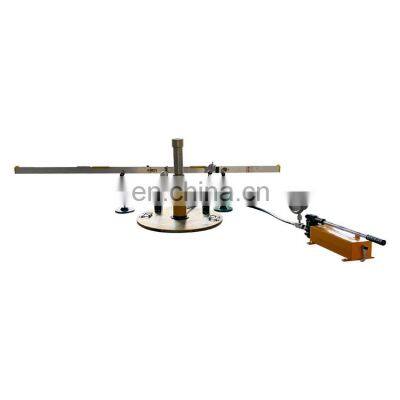

Product Usage and Features K60 Plate load testerAPPLICATION:Plate load tester is suitable for thick. The test of the foundation coefficient of fine-grained soil and soil-filled compacted subgrade and base layer can also be used to calculate the deformation modulus of uniform foundation soil. BASIC STRUCTURE: 1. Loading system: It is composed of loading plate, jack, high-pressure tubing of manual pump, etc., and the positioning line for jack is engraved on the loading plate. 2. Bridge measurement: it is composed of a support, a beam, a dial indicator and a bracket. The beam can be raised and lowered along the two support columns to adjust the height.ParametersProductK60 Plate load testerStraight through load plate600mmJack stroke100mmSpan of side bridge3000mmPressure test range0~60MPa (level 0.4)Displacement test range0-10mmApplicable temperature5°-45°CDetailed ImagesApplicationContact USCangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 10 years, With advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipments, advanced management and production experience, developing the high-quality testing instruments.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificatePacking & DeliveryWhy Choose us ?Q1: How long is the lead time?A: Normally 3-7 days. Depend on the order quantity.Q2: What is the transportation method?A: By Express, By air or By Sea.Q3: What are the payment terms?A: Credit card ,Bank Wire Transfer, L/C, Western Union etc.Q4: How is the after-sales service?A: 12 months quality warranty with online technical support.Q5: Are there any factory quality certificates?A: We have the ISO certificate and National patent certificates.Q6: Is GTJ test trustworthy?With more than 12 years' production experience. We would give you an excellent experience!
>>
