Ultra-High Adaptability Portable CNC Handheld Fiber Laser Welding Machine 1000W/1500W/2000W/3000W

Product Description

HW SERIES Hand-held Laser Welding Machines

Product Description

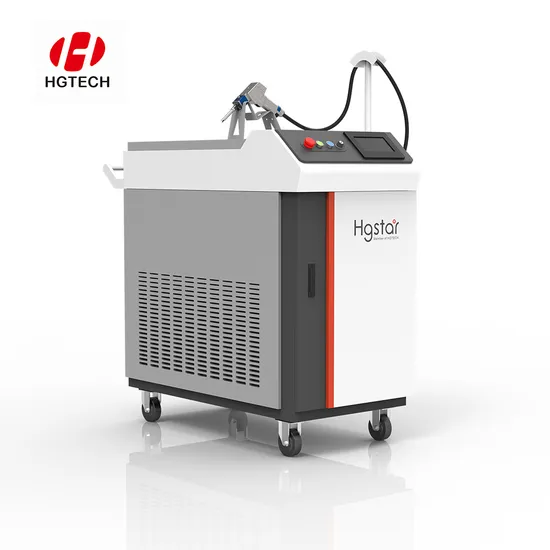

The HW series (HW-2000W/1500W/1000W) is a handheld welding machine developed by HGSTAR in accordance with international export standards.
The HW series (HW-2000W/1500W/1000W) optical fiber continuous laser handheld welding machine consists of:
an integrated cabinet,
a handheld welding head and control system
an optical fiber device,
a cooling water circulating system
a wire feeder system
a shielding gas system.




This series of products can effectively solve the problems of slow speed and large deformation of traditional argon arc welding.
Widely used in metal advertisement welding, stainless steel engineering welding, sheet metal cabinet welding and large sheet metal structure welding.

Circulating water circuit design Rapid cooling of the gun body.

Coaxial blowing mode of protective gas It is no longer limited to linear welding

A powerful operating system
Simple and clear operation interface,easy to master and easy to adjust.

Multiple spot modes can be switched freely (With Wobble welding heads)

The light spot can be adjusted arbitrarily Accurately align the welding wire

Higher photoelectric conversion efficiency
Second generation optical fiber transmission system
Better and more stable beam quality
Powerful chiller
provide cooling protection for laser and laser head
Ensure the stability of the production process and prolong the service life
Advantages:
The welding speed is fast, and the laser welding efficiency can be several times higher than the traditional arc.
The weld is smooth and beautiful, reducing the subsequent grinding process, and saving time and cost.
There is no deformation and weld scar during welding, which can achieve deeper penetration and stronger welding strength.
Laser welding is simple in operation, low in consumption and long in service life.
Safer and more environmentally friendly.





Technical Specification

Machine Model	HW-3000/2000/1500
The laser wavelength	1080nm
Laser power	3000W/2000W/1500W
Weldable material	Carbon steel stainless steel aluminum
Optical fiber	50um,10m(15m/20m optional)
Modulation frequency	20KHZ
Energy stability	<3%
Cooling medium	Distilled water/pure water
The whole machine net weight	>210KG
Spot diameter(swing optional)	0-5mm
Machine size(mm)	Length:1110 width:595 height:1030 (HW-3000:Length:1270 width:595 height:1140)
The engine power	10KW/8KW/7KW
Recommended Environment	Clean and dust-free,no source,10ºC-40ºC,humidity&lt;70%
Operating mode	LCD touch screen
The power supply	380 v / 3PH or 220 v / 1PH 50HZ or 60HZ optional based on country and region

No.	Name	Specifications	Quantity	Remarks
1	Integrated cabinet	HW series	1 set	HG-Star
2	Laser	3000W/2000W/1500W	1platform	RFL-3000H RFL-2000H/1500H
3	Cold water machine	Special optical fiber chiller 3000/2000/1500 type	1platform	50HZ/60HZ optional
4	Laser welding joint	QBH	1 set	Double pendulum welding joint (optional)
5	Control system	Touch screen control system	1 set	HG-Star
		7 inch resistance control screen
		Hand welding joint
		Install components by sending wire
6	Automatic wire feeder	HW special use	1 set	HG-Star
7	Device Appearance Color	HgTECH standard color		HG-Star

Size drawing

Applicable Materials
HW series (HW-2000W/1500W/1000W) laser welding can realize the welding of carbon steel, stainless steel, aluminum and other different materials, as well as butt welding, lap welding, corner welding, flanging and other different forms of welding.
Applicable Industries





Sample

Applicable to welding carbon steel, stainless steel, aluminum, brass , alloy metals, etc.


After Sales Service
Maintenance Process


Service Process




Packaging and shipping




Company Profile







Our Vision:
Participate in building a fully connected, fully perceptual, and intelligent world, and become a global influential technology company


Business Partners:



FAQ
FAQ:
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HG STAR!


HG STAR TECHNOLOGY CO.,Ltd.

Add
HG Tech Intelligent industry park , No. 66, Weilai 2 Road, Optical Valley, East
Lake Hi-Tech Development Zone, Wuhan, China,PC:430223
Email


Tel
+86-27-87180225 / +86-531-80982120
After-sales Service
+86-27-87180253/+86-27-87180263

---
