US$27,042.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Tool Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Automatic
Certification
CE, ISO 9001
Direct Spindle
Bt40-150-8000r/Min
Transport Package
Container
Specification
3100mm*2500mm*2800mm
Production Capacity
500 Units/Month

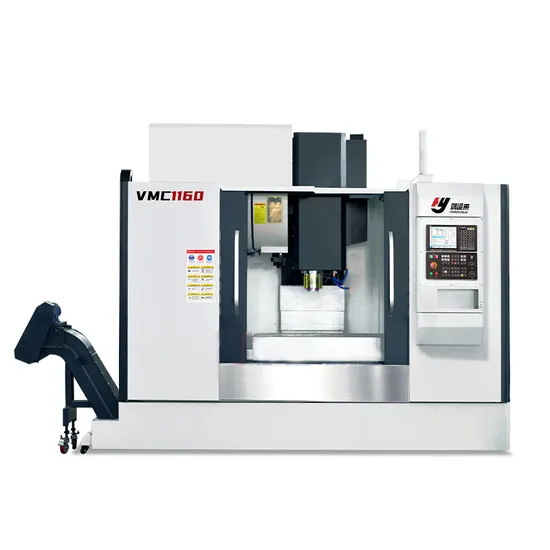

Product Description
Product Parameters
| | | Specification | Unit |
| Table | Size | 1200*600 | mm |
| Max. Table Load | 800 | kg |
| T-slot No. and size | 5-18-100 | mm |
| processing | Table Travel (X) | 1100 | mm |
| Scope | Table Travel (Y) | 600 | mm |
| | Table Travel (Z) | 600 | mm |
| | Spindle end face to Work surface distance | Max. | 720 | mm |
| | Min. | 120 | mm |
| | Distance from Spindle center to Z Axes rail surface | 650 | mm |
| Spindle | Spindle Taper (7:24) | BT40-150 | |
| Range of Spindle Speed | 8000 | r/min |
| Spindle Motor Power | 11/15 | kW |
| Oil cooler | | With |
| Move | Fast-moving | X Axes | 36 | m/min |
| Y Axes | 36 |
| Z Axes | 24 |
| Moving speed | 1-10000 | mm/min |
| Tool Magazine | Tool Magazine style | disc | |
| Tool Magazine Capacity | 24 | |
| Min. Time of Tool Change | 2.5 | s |
| Positioning Accuracy | Accuracy testing standard | JISB6336-4:2000/ GB/T18400.4-2010 | |
| X/Y/Z Axes | 0.008 | mm |
| X/Y/Z Axe Repeatability | 0.005 | mm |
| Dimension(L*W*H) | 3100*2500*2800 | mm |
| Weight | 6800 | kg |
Product Description
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
>>
