Basic Info.
Output Type
AC Three Phase
Number of Blade
Three Blade
Rotating Shaft
Horizontal
Stress Way of Blade
Resistance
Product Name
Wind Turbine
Start up Wind Speed
2.5m/S
Survival Wind Speed
45m/S
Transport Package
Standard Carton
Production Capacity
10000 Units Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 350.00cm
Package Gross Weight
55.000kg
Product Description

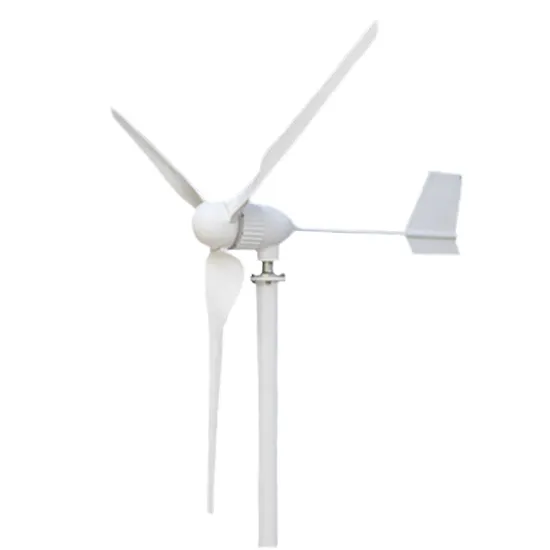

Nylon Fiber Blades 1kw 2kw 3kw Horizontal Axis Wind Turbine Generator
Product Parameters
| Rated power | 1000W | 1500W | 2000W | 2500W | 3000W |
| Maximum power | 1300W | 1700W | 2500W | 3000W | 3200W |
| Rated voltage | 48V | 48/96V | 96/120V | 120/220V | 120/220V |
| Start up wind speed | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s | 2.5m/s |
| Rated wind speed | 10.5m/s | 11m/s | 10.5m/s | 11m/s | 11.5m/s |
| Survival wind speed | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s |
| Blades length | 2.6m | 2.9m | 3.5m | 3.7m | 4m |
| Number of blades | 3 | 3 | 3 | 3 | 3 |
| Gross weight | 37kg | 42kg | 46kg | 52kg | 55kg |
| Brake | by controller |
| Blades material | Nylon fiber |
| Generator type | 3 phase permanent magnet AC generator |
| Magnet material | NdFeB |
| Generator case | Casting aluminum alloy |
| Speed regulation | Automatically adjust windward direction |
| Certificates | CE, ISO14001, ISO 9001, TUV |
| Working temperature | -40°C~80°C |
Detailed Photos
Working Structure
Company Profile
Certifications
FAQ Q: Does the System Installation Easy?
A:Very easy, every customer can do it by themselves, we will supply all the components for installation and very detailed manual for you. If you still have confusion, our technician could support you all the time by video to make sure there is no mistake of connection.
Q: Distance between wind turbine, controller and battery?
A: Normally better within 10m from wind turbine to controller, and controller to batteries, Batteries and inverter to load within 20-50m.
Q:Which model should I choose?
A: If you are not sure to choose the model, please contact our sales with the following points:
1. What appliance do you want to run by the system? How many watts are they? How long do they work?
2. Your annual average wind speed .
3. What kind of system do you want? On-grid or off-grid?
Q:Can I only buy parts of the whole system?
A: Yes, you can only buy wind turbine, controller, inverter etc.
>>
