Outdoor High Definition Waterproof SMD Full Color Advertising P6 LED Display

US$725.00 6 Pieces (MOQ)

Basic Info.

Model NO.
Outdoor P6
Pixel Configuration
1R, 1G, 1B
Display Function
Video Display, Image & Text Display, Text Display, Market Display
Average Power Consumption
600W / m²
Scanning Mode
1/8 Scan
Display Type
LED Video Display
Application
Advertising
Certification
CE, RoHS, CCC, ETL
Waterproof
IP65
Pixel
27776dots/Sqm
Cabinet Weight
35kg
Cabinet Size
960*960*110mm
Scan
1/8scan
Brightness
6500CD
Life Time
100000hours
Function
Advertising
Average Power
550W/Sqm
Maxium Power
800W/Sqm
Fans
4 Fans 1 Cabinet
Power
4 PCS 200W Power One Cabinet
Controller
HD & Nova & Colorlight
Transport Package
Wooden Case
Specification
960*960*78mm
Origin
China
HS Code
8521909000
Production Capacity
20000sqm /Month

Packaging & Delivery

Package Size
960.00cm * 960.00cm * 40.00cm
Package Gross Weight
20.000kg

Product Description

Video Display Function and Outdoor Usage HD outdoor P6 full color led display board is widely use for the outdoor commercial advertising , it is can be widely use at road & high speed way & City town commercial advertising panel
With the price come down more and more widely use in our city .

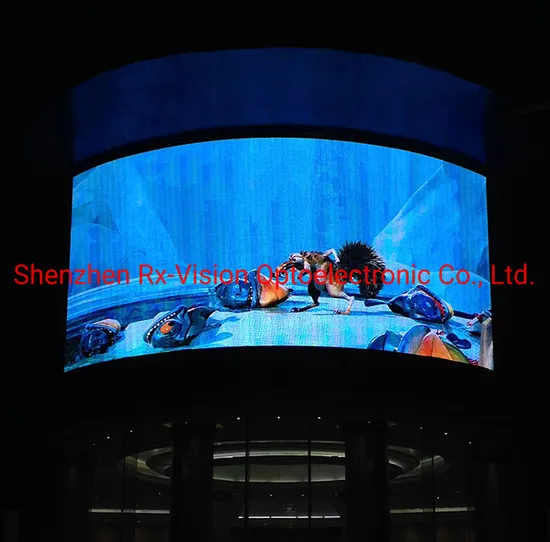

Big Advertising Billboard the area is generally tens of square meters to hundreds of square meters or even larger, high brightness, large viewing angle, can work in the sun, with certain wind, rain, and waterproof functions. Mainly used in outdoor advertising, stations, squares, shopping malls, etc.,
Outdoor LED displays usually appear in the form of outdoor media. Outdoor media refers to the media for advertising information set up on the roofs of major buildings and in front of commercial areas, roadsides and other outdoor venues. The main forms include Big Advertising Billboard , LED electronic displays, ,and LED screens. , Balloons, airships, carriages, large inflatable models, etc.
Specification :
NO.: Product name Technical parameter
1 Pixel Pitch(mm) 6mm
2 Pixel configuration 1R1G1B/SMD3535
3 Pixel density 27777dots/sqm
4 Brightness ≥6000cd/sqm
5 Module size(W*H) 192mm×192mm
6 Module Resolution (W*H) 32 dots x 32dots
7 Module weight 400g
8 Cabinet size (W*H) 576mm×576mm or 768mm×768mm
9 Led lamp National star led lamp
10 Drive IC MBI5124
11 Drive mode 1/8 scan
12 Viewing Angle(V/H) 140 ºC
13 Grey Scale 65536 degree
14 Life time >100,000 Hours(50%)
15 MTBF >50,000 Hours
16 Operating Voltage AC110V/220V±10%
17 Screen Power Consumption Max: 680w/; Average:220w/
18 Input Power Frequency 50/60Hz
19 Operating temperature -30--60degree
20 Humidity 10%-95%
21 Refresh Rate ≥1920HZ
22 Control Method Synchronized with computer monitor
23 Color Temperature 6500K-9500K
24 LED control system LINSN,Nova-star,Colorlight is selectable
25 Control Distance 100 m (no repeating); Optical fiber transmission: 500m- 15km
26 Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

Big Advertising Billboard is rxvisionled atest multiy function LED display, this LED display cabinet size is 960mm×960mm standard size, and can be used as indoor fixed installation LED Display, outdoor fixed installation LED display, rental LED display, perimeter sports LED Display, advertising LED display and more.
960 series Led display with 960*960mm standard size cabinet design ,Unify the standard size cabinet screw holes for all kinds of standard Led modules of 320*160mm modules .
Cabinet Image :

LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps. Humanization handlebar design make you more easy to move the cabinet.
