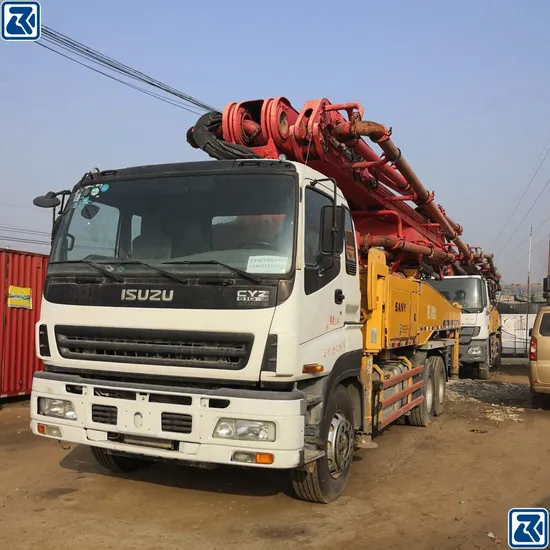

Used Concrete Pump Truck Mounted on Truck Chassis Japan Used Pump Truck

Product Description

Used Concrete Pump Truck Mounted on Truck Chassis Japan Used Pump truck
1. The HOWO series from SINOTRUK offers you great value for your money.

1.1 Better aerodynamics with improved front
Improved aerodynamics : better fuel economy, which again improves your bottom line. Easy access for maintenance.
1.2 Ergonomically designed workspace
Ergonomically designed driver's seat: easy reach and access. Comfort for the operator. Design and layout of dashboard provides crucial information in view and all functions in easy reach.
1.3 A comfortable ride with air suspended seats
Air-suspended driver and passenger seats: relaxed and comfortable ride. Seats are fully adjustable, fitting the driver's body.
1.4 Ample power when you need it
WD615.47, Euro II emission standard,4 stroke direct injection diesel 6 cylinder in-line engine with water cooling, turbo-charging & intercooling. Maximum output: 371hp (273Kw) at 2200 rpm according to DIN and maximum torque 1500 Nm at at 1100~1600 rpm. Meanwhile , WD615.69, WD615.87, WD615.62 is optoinal

Product Parameters
2. Concrete Pump Truck Main Specifications:

Sinotruk 4X2 33meter Concrete Pump Truck

(33m) Whole Vehicle Parameters	Overall size:(LxWxH)	1.1x2.5x3.7m
	Kerb Mass	20000kg
Boom & Leg Parameters	Vertical Boom Height	32.2m
	Horizontal Boom Height	28m
	Vertical Boom Depth	20.8m
	Length /Turning Angle of Section 1	7120mm/90°
	Length /Turning Angle of Section 2	5470mm/180°
	Length /Turning Angle of Section 3	5200mm/45°
	Length /Turning Angle of Section 4	5150mm/230°
	Length /Turning Angle of Section 5	5000mm/360°
	Boom Folding Type	RZ
	Turning Angle of Slewing Mechanism	±365°
	Span between Front Legs (mm)	5850mm
	Span between Rear Legs (mm)	5420mm
	Distance between Front and Rear Legs (mm)	6300mm
	Unfolding Mode of Legs	X
Pumping System Parameters	Concrete Distribution Valve Type	S
	Theoretical Concrete Pumping Capacity	90m3/h, 68 m3/h
	Theoretical Pumping Pressure	8 Mpa
	Theoretical Pumping Times	26,19 times/in
	Inner Diameter of Concrete Cylinder	230,200,mm
	Cylinder Stroke	2000,1800,mm
	Diameter of Delivery Pipe	125mm
	Length of Outlet Hose (mm)	3000mm
	Diameter of Outlet Hose (mm)	125mm
Hydraulic Transmission System Parameters	System Working Pressure	31.5 Mpa
	Displacement of Main Hydraulic Oil Pump	190, 130L/RPM
	Oil Cylinder Hydraulic Seals	Parker
	Hydraulic Oil Tank Capacity	480L
	Cooling Mode of Hydraulic Oil	wind
Electric Control System Parameters	Control Power Supply	24 V
	Working Voltage	24 V

3.Our Factory
Overall testing guarantees every vehicle is a competitive product.
Sinotruk ownsprofessional road testing grounds for heavy trucks, so every new developed product
will be tested by extremely strict professional experiments during development process.
Our main products
4.Our Main products


Packaging & Shipping
4.Packing and Shipping
Packing: Nude packing after painting wax or according to your requirement.
Shipping: By bulk cargo carrier, RORO

---
