Mining Shaft Winch Steady Car Mine Explosion-Proof Shaft Hoisting Machine

Product Description

Product Description

Introduction of Shaft Sinking WinchShaft drilling winches are mainly used for lifting some equipment and materials in coal mines, metal mines and non-metal mines.... It can also be used for other underground and ground heavy lifting.
It has the advantages of strong lifting capacity, large capacity, stable operation and so on.
Preparation before operation
Equipment Inspection: Before operating the drilling winch, the operator needs to make a thorough inspection of the equipment, including the power system, winch, drilling tools and their connecting parts, etc. to ensure that all parts are working properly.
Safety: The operator must wear appropriate personal protective equipment (PPE) such as helmet, goggles and gloves to ensure personal safety.
ENVIRONMENTAL ASSESSMENT: Check the working environment to ensure that there are no obstacles and that necessary drainage and safety measures are taken to avoid accidents.
End of operation and maintenance
RETRACTING THE DRILLING TOOL: After the operation is completed, slowly retract the drilling tool to the ground. Ensure that all parts are completely recovered and avoid leaving any residue.
Regular maintenance and upkeep: After the operation, the equipment needs to be cleaned and inspected, and the winch needs to be lubricated and maintained regularly to ensure that it is in good condition for the next use.zmwm21
Product Parameters

Parameter of Shaft Sinking Winch

Model		JZ10/800	JZ16/800	JZ16/1000	2JZ16/1000	JZ25/1000	JZ40/1000	JZ40/1800
Wire rope Max. Static tension (KN)		100	160	160	160	250	400	400
Wire rope Capacity (m)		800	800	1000	1320	1000	1000	1800
Drum specification	Diameter (mm)	800	1000	1000	1000	1050	1250	1250
	Width (mm)	820	1400	1400	1400	1210	1480	2060
	Center height (mm)	900	1050	1050	1050	1326	1500	1500
Wire rope diameter		32	40	40	40	52	60	60
Number of winding layers		8	7	7	8	10	9	10
First layer rope speed	Fast (m/min)	5	4.7	4.7	4.7	4.8	5.2	5.2
	Slow (m/min)	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Electric motor	Model	YRT250M2-8	YRT250M2-8	YRT250M2-8	YRT280S-8	YRT280S-8	YRT355S-8	YRT355S-8
	Power (KW)	22	30	30	55	45	90	90
	Speed (RPM)	730	730	730	723	723	730	730
	Voltage (V)	380	380	380	380	380	380	380
Dimensions	Length (mm)	2883	3600	3600	5726	3980	4725	4305
	Width (mm)	2962	3280	3280	3806	3935	4593	4593
	High (mm)	1728	2300	2300	2988	2620	3300	3300
Weight (kg)		7480	11500	11500	18000	14680	35000	3800

Detailed Photos

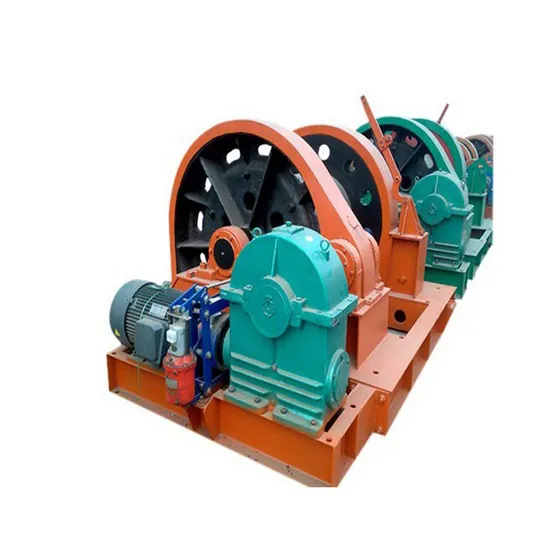

Photos of Shaft Sinking Winch
