US$10,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
NR-3.7-25-15L-11S-36-229
Transport Package
Sea Shipping Crate Box
Specification
15kg payloads
Production Capacity
200units/Month
Product Description

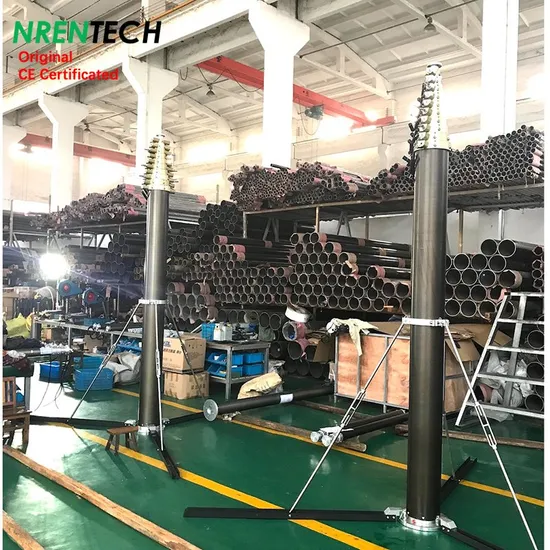

25m Locking Pneumatic Telescopic Mast-15kg payloads NR-3.7-25-15L-11S-36-229 25m Lockable Pneumatic Telescopic Mast 15kg payloads
Item #: NR-3.7-25-15L-11S-36-229
1> Extended Height: 25m
2> Retracted Height: 3.7m
3> Payloads: 15kg max.
4> Type: Lockable
5> Number of sections: 11 sections
6> Section diameter*thickness: 36*3mm. 51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm, 180*5mm, 202*6mm, 229*7mm
7> Materials: aluminum alloy AL0603T5
8>Mast weight: 230kg approx.
9> Working air pressure: 0.25Mpa/29PSI recommended
10> Working working temperature: -15~85ºC
11> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe, 1x air control manual, 1x over pressure protection valve
12> Optional accessories: electric air compressor DC12V or AC220V/50Hz, 4 layers and 4 directions guying rope kits with mounting spikes, ground mounting tripod, vehicle side mounting brackets
25m Lockable Pneumatic Telescopic Mast-15kg Payloads
|
1>
| Item #:
| NR-3.7-25-15L-11S-36-229
|
2>
| Extended Height:
| 25m
|
3>
| Retracted Height:
| 3.7m
|
4>
| Maximum Payloads:
| 15kg
|
5>
| Type:
| T-Lockable, Anti-rotation, automatic extension, retraction by manual operation
|
6>
| Inside Electric Wires
| non
|
7>
| Number of Sections:
| 11
|
8>
| Sections' diameter*Thickness:
| 36*3mm, 51*3mm, 66*3mm, 82*4mm, 98*4mm, 118*4mm, 140*5mm, 160*5mm,
180*5mm, 202*6mm, 229*7mm
|
9>
| Materials:
| Aluminum Alloy, Stainless steel fasteners
|
10>
| Working Air Pressure:
| 0.2Mpa/29PSI
|
11>
| Working Temperature:
| -25~55 Degrees Celsius
|
12>
| Mast Weight:
| 230kg approx.
|
13>
| Wind Loads:
| 80km/h with guying cables (4 layers x 4 directions, mounting radius 25m)
|
14>
| Default accessories:
| 1x top flange
|
| | | 1x bottom flange
|
| | | 1x air hose pipe
|
| | | 1x retraction operation tool
|
| | | 1x air controller
|
15>
| Optional Accessories:
| Ground Mounting Tripods
|
| | | 4 x 4 Guying Rope Kits with Mounting Spikes
|
| | | Electric Air Compressor
|
| | | Vehicle Side Mounting Brackets 1 pieces per set
|
| | | Remote Controller Kit for compressor
|
>>
