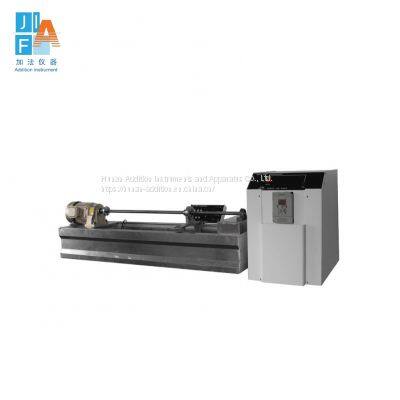

Petroleum Asphalt Ductility Tester ASTM D113
Product Model: JF4508
Product Introduction
This instrument is suitable for testing the ductility of petroleum pitch, and also suitable for measuring the ductility of coal tar pitch.
Technical Parameter
1. Applicable standards: ASTM D113 GB/T4508 NFT66006 DIN52013
2. Temperature control: digital display PID temperature controller
3. Heating method: high-quality stainless steel electric heating tube heating
4. Refrigeration method: high-quality compressor refrigeration
5. Working temperature: 5~25±0.1℃ internal circulation
6. Speed control system: high-quality frequency conversion speed control, speed can be adjusted
7. Rashen distance: 1~1.5m
8. Working power supply: AC220,240V±10%/50,60HZ
9. Machine power: 2000W
Main Feature
1. Electric motor traction, adjustable speed, can hold 1 sample;
2. The load sensor can transmit the pressure load, moving speed, bath temperature and other information of the sample to various displays on the panel;
3. Ceramic-coated stainless steel surface, placed horizontally, with runners on four feet;
4. Stainless steel water bath, heat insulation, with faucet;
5. The chrome-plated copper pump can properly stir the liquid in the water bath and can be turned off by the button during the test
6. Stainless steel heater;
7. High-quality Omron PID thermostat, digital display temperature, accuracy 0.1℃
8. Safety device, when the temperature in the bath is too high or the water level is too low, it can automatically cut off the power supply, and the light flashes on the control panel;
9. Built-in hermetic refrigeration compressor;
>>
