Mini Excavator 1600kg 1.6 Ton Excavators Small Digger with CE EPA

Product Description

mini excavator 1600kg 1.6 ton excavators small digger with CE EPA


my friend,Welcome to Shandong HuaYee Heavy Industry Group Co., Ltd.
A company specializing in the manufacture of small excavators in China,
You can choose any type of excavator you need and support various customizations.
Looking forward to cooperating with you very much.
Send Inquiry,
Get exclusive services and exclusive discounted prices.
Now more and more people will choose to buy small excavators from China, mainly because the quality is good and the price is cheap, you don't have to worry about how to receive the excavator and how to deal with the problem after. We can provide you with a complete set of service solutions, and we have a complete production team, marketing team, and after-sales team. You just need to choose the model you need and consider whether it is the right price.

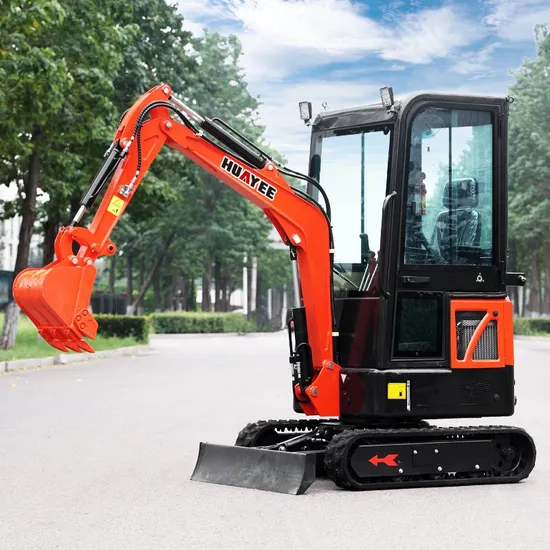

HY16 MINI EXCAVATOR Total measurement
Total length*width* height(during transportation)	2800*1100*1550 mm
Dozer blade width (extend/retract)	1110 mm
Dozer blade height	210 mm
Track center distance	740 mm
Standard track shoe width	180 mm
Platform ground clearance	115 mm
Standard bucket width (with/without tooth)	420/ 400 mm
Track length	1150 mm
Wheel spacing	920 mm
Scope of work
Maximum digging height	2750 mm
Maximum unloading height	1950 mm
Maximum digging depth	1500 mm
Maximum vertical boom digging depth	1300 mm
Maximum digging distance	3200 mm
Maximum digging distance on the ground	3250 mm
Minimum radius of gyration of the front section	1500 mm
Minimum radius of gyration at rear end	560 mm
Maximum bulldozing height	130 mm
Maximum bulldozing depth	230 mm
Performance parameter
Operating Weight	1600 kg
Bucket capacity	0.03 m3
engine model	LD380/D722
Displacement	1.35 L
rated power	19KW
Walking speed	2km/h
Swing speed	9 r/min
Gradeability	35°
Ground pressure	11 kpa
Bucket digging force	11 KN
Fuel tank capacity	15 L
Swing angle	70/51 °

The biggest advantage of the HY16 mini excavator:
Details determine our attitude, and details determine the quality of products. Please my friend take a closer look.
1.International famous brand hydraulic hose. Advantages: international big brand, stable and reliable quality!
2. External six-way alloy hard tube Advantages: strong and durable, no fear of wind and sun
3. The external hydraulic hose is equipped with spring retainer and spiral protection. Advantages: Protect the hose from friction, collision, bending, etc. damage!
4. The built-in hydraulic pipes are neatly arranged and standardized. Advantages: easy to view and post-maintenance!
5. The hydraulic pipe is equipped with a guide guard ring. Advantages: Fix the direction of the oil pipe, and protect the oil pipe from damage such as squeezing friction!
6. The hydraulic hose of the boom goes to the inner line, and the oil pipe is placed below the unconventional. Advantages: The hose will not be bumped or broken with foreign objects!
Wait for the details, no longer list them one by one, HUAYEE mini excavator is the most correct choice!

---
