Shuttle Extrusion Blow Molding Machine

US$42,800.00-42,900.00 1 Unit (MOQ)

Basic Info.

Model NO.
SY-60-1
Raw Material
PE
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Avilable
Type of Shipping
Sea Transportation
Transaction Mode
Fob
Transport Package
Wooden Packing
Specification
4000MM*3500MM*2500MM
Trademark
SJ
Origin
China
HS Code
8477109000

Product Description

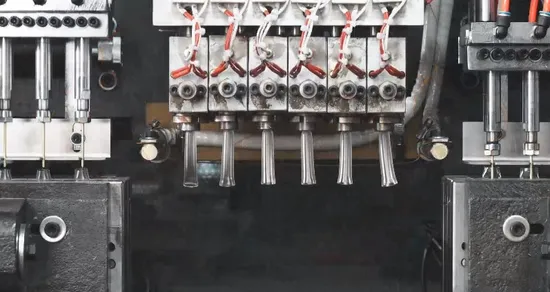

This equipment is full electric servo control, the equipment has 9 servo motors to separately control each action of the equipment, the equipment closing structure adopts armless mode to better protect the safety of the operator during commissioning, and the output of enema bottle products is 110,000 in 24 hours.
Code SYJII-SF-75-6
Max Product Volume 5L
Output 90pc/h
Machine Size 3800mm*2200mm*2200mm
Weight 6000KGS
Voltage&Frequency Clients' Specified
screw Diameter 75mm
L/D Ratio 1:25
Die Head Qty 6pcs
Max Center Distance of Die Head /
Extrusion Motor Power 18.5-22KW
Total Power 55KW
Average Energy Consumption 38kw
Extruder heating power 12kw
Number of hating zone 4
Oil pump drive power 7.5KW
Max plasticizing capacity 75kg/h
Platen Size 420mm*400mm
Max mould size 550mm*380mm*220mm
Clamping force 90KN
Opening Stroke 200mm-250mm
Moving Stroke 600mm
Cooling water pressure 0.3MPa
Water consumption 60L/min
Air pressure 0.6Mpa
Air consumption 0.6centiare/min
