Product Details
Product Description
Product Description

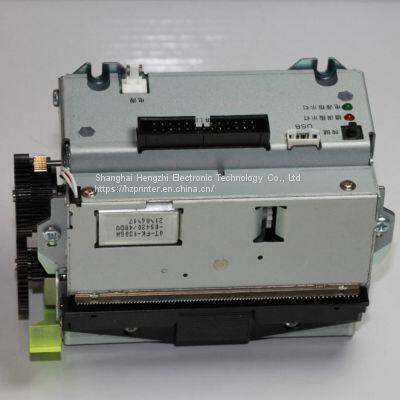

Product characteristics*Compatible with Epson m-t532 and ba-t500 movement and main control board
*Simple paper feeding structure, 180 degree paper feeding
*Equipped with automatic cutter
*High speed printing
*Paper out status alarm
*Provide windows, Android, demo and SDK
Application:
Self service vending machines, self-service cash registers, queuing machines, advertising machines, game machines, industrial control testing instruments, medical equipment, etc
Product parametersPrinting Method Thermal Line
Printing Resolution 8dots/mm(203dpi)
Printing Speed 220mm/s
Paper Width 79.5±0.5mm
Paper Roll Diameter 120mm(MAX)
Print Font Codepage, ASCII 9×24, 12×24
Barcode 1D: UPC-A，UPC-E，EAN-13，EAN-8，CODE39，ITF25，CODEBAR，CODE93， CODE128 2D: QR CODE, PDF417, DATAMATRIX
Power Supply DC24V±10％, 2A
Interface Parallel+USB
Paper Thickness 0.06~0.08mm
Paper Supply Method Manual loading
Cutting Method Full / Partial cut
Auto cutter Type Guillotine
Auto cutter Life 1,000,000 cuts
Operating Temp/Humidity 5～50℃/10～80%
Storage Temp/Humidity -20～60℃/10～90%
TPH 100KM
