Metal Laser Cutting Machines for Round Tube Diameter 20-254mm and Square Tube 20*20-200*200mm From China Factory Supplier

Product Description

Laser Cutting Machines of a Great Variety--HSG Laser HSG Laser can serve global users with 20+ kinds of machines that are suitable for most materials needing to be cut, including sheet metal laser cutting machine, sheet & tube laser cutting machine, tube metal laser cutting machine, bending machine, welding machine, automatic systems. The following is the introduction of a type of 45 ° Bevel Tube Laser Cutting Machine:

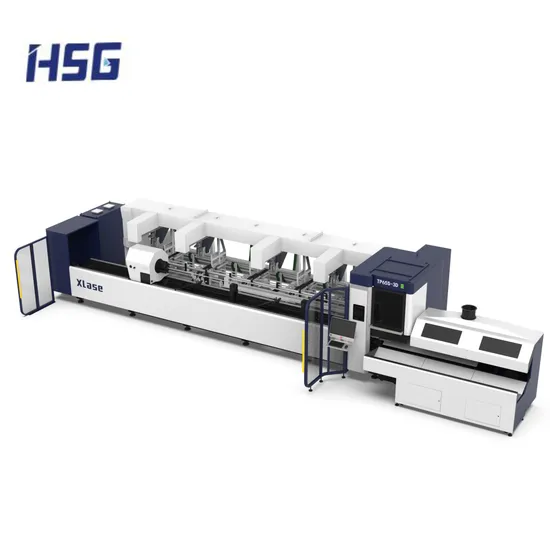

45° Bevel Tube Laser Cutting Machine 3000-4000W
Product Description
< 3D Five-axis Cutting Head, 45° Bevel >

Self-developed by HSG Laser

Take control of laser focus thanks to its fully automated servo motor

Laser path reshaping technology

Swingable head outfitted with the function of collision prevention

Modular structure in favor of repair or maintenance


< HSG-X Bus CNC System >
* Bus refers to data transmission mode via on-site bus control system.

< Double Digital Chucks >
The chucks are outfitted with pressure feedback system to adjust cutting pressure based on tube size and thickness.
They are also featured by auto recognition of different tubes and real-time warning with no or less manual intervention.
Closed-loop control


Detect real-life state of clamping claws

Access to tube data easily

Self-adaptive adjustment of clamping force


Our Advantages
Space Leapfrog and Flying Cutting


--The technology helps to minimize the moving path of cutting head by omitting repeated lift and fall, therefore, cutting speed is improved beyond doubt.
--With three-axis linear interpolation, TPS performs well while cutting into small densely-distributed graphics.


Labor-saving Configurations

Standard Tube Automatic Loading Device (Optional)
Tube to be cut is conveyed to check-waiting area for length measuring and cut sequencing. Support frame is used for supporting tubes to ensure cutting stability and precision.
Unloading Device (Default)
Unloading height is manually adjusted when unloading different types of tubes. Additionally follow-up unloading device is also optional.

Specification

Applications
HSG Fiber Laser Cutting Machines are widely used in Manufacture Billboard, Signs, Advertising, Signage, Metal Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts Nameplates, etc.

Technical Parameter

Model	TP65S	TP80S
Power	3000-4000W
X/Y-axis Positioning Accuracy	±0.03mm/m
X/Y-axis Repositioning Accuracy	±0.03mm
No-load Speed	140m/min
Acceleration	1.2G
Rotating Speed of Chucks	120r/min
Cutting Capacity of Round Tube	Φ12-Φ273mm
Cutting Capacity of Square Tube	12*12mm-200*200mm
Length of Tube	6500mm	8000mm
Weight of Single Tube	200kg
Tailing	220mm
Overall Dimensions (L*W*H)	12500*4700*2600mm	14000*4700*2600mm
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.

Sample Display

Certifications


Visit & Exhibition

Packaging & Shipping
1-Our high-standard package include aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam, in order to satisfy ocean shipping criteria.
2-We will ensure they can be delivered to customers ASAP. without damage.
3-We also support a variety of transportation methods.

---
