| US$1,000.00-3,000.00 | 1 Piece (MOQ) |

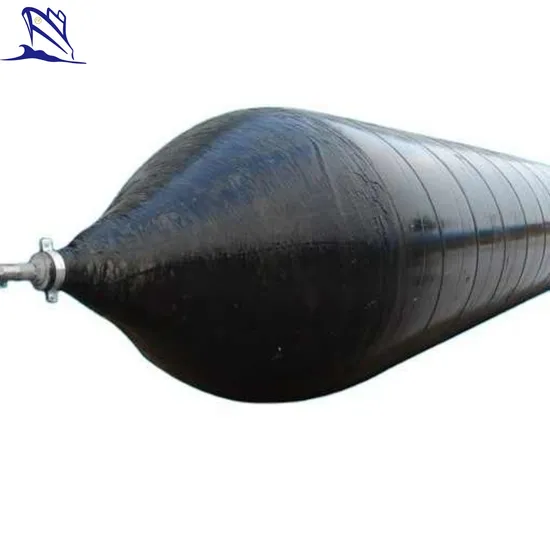

| DIAMETER | WORKING PRESSURE | WORKING HIGHT | GUARANTEED BEARING CAPACITY PER UNIT LENGTH | ||
| KN/m | T/M | Lb/ft | |||
| D=1.2m (D=3.94FT) | 0.17Mpa (24.66psi) | 0.7m(2.296ft) | 133.61 | 13.62 | 9154 |
| 0.6m(1.968ft) | 160.30 | 16.34 | 10983 | ||
| 0.5m(1.640ft) | 187.08 | 19.07 | 12818 | ||
| 0.4m(1.312ft) | 213.76 | 21.79 | 14646 | ||
| 0.3m(0.984ft) | 240.44 | 24.51 | 16474 | ||
| 0.2m(0.656ft) | 267.22 | 27.24 | 18309 | ||
| D=1.5m (D=4.92ft) | 0.13Mpa (18.85psi) | 0.9m(2.952ft) | 122.63 | 12.50 | 8402 |
| 0.8m(2.624ft) | 143.03 | 14.58 | 9800 | ||
| 0.7m(2.296ft) | 163.43 | 16.66 | 11198 | ||
| 0.6m(1.968ft) | 183.94 | 18.75 | 12602 | ||
| 0.5m(1.640ft) | 204.34 | 20.83 | 14000 | ||
| 0.4m(1.312ft) | 224.75 | 22.91 | 15398 | ||
| 0.3m(0.984ft) | 245.15 | 24.99 | 16797 | ||
| D=1.8m (D=5.90ft) | 0.11Mpa (15.95psi) | 1.1m(3.608ft) | 120.96 | 12.33 | 8287 |
| 1.0m(3.280ft) | 138.22 | 14.09 | 9470 | ||
| 0.9m(2.952ft) | 155.59 | 15.86 | 10660 | ||
| 0.8m(2.624ft) | 172.85 | 17.62 | 11843 | ||
| 0.7m(2.296ft) | 190.22 | 19.39 | 13033 | ||
| 0.6m(1.968ft) | 207.48 | 21.15 | 14216 | ||
| 0.5m(1.640ft) | 224.75 | 22.91 | 15398 | ||
| 0.4m(1.312ft) | 242.01 | 24.67 | 16581 | ||
| 0.3m(0.984ft) | 259.38 | 26.44 | 17771 | ||
| 0.2m(o.656ft) | 276.64 | 28.20 | 18954 | ||
| NOTE : THE ABOVE VALLUE IS FOR REFERENCE ONLY . IT IS SUBJECT TO CHANGE IN ACCORDANCE WITH ACTUAL AIRBAG SYSTEM DESIGN . YOU CAN CHOOSE THE REQUIRED OF SHIPS AND BOATS OF ALL SIZES. WE WILL MEET YOUR PROJECTS/SUPPLIED UPON CLIENTS REQUEST . | |||||
