High Precision Blin Swiss Type CNC Lathe Machine with ISO 9001

Product Description

Twin spindle small swiss type cnc lathe machine with bar feeder(BL-CSL325/326)

- Dual spindle, total 5 axes(CSL325)/6 axes(CSL326,mount Y2 axes)
- Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand

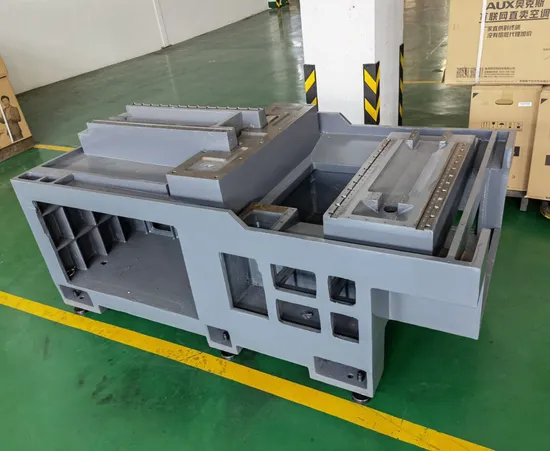

- Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
- Adopt high precision built-in electro-spindle,NSK/NTN super high precise angle contact ball bearing, achieve spindle's high rigidity and good precision retention,spindle flop≤2μm
- Adopt JAPAN THK brand high precision ball screw and linear guideway
- Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes
- After mount automatic bar feeder, can realize automatic machining
- Suitable for complex, small-sized,precise,slender axles workpiece machining
Details:

Item		Unit	BL-CSL325	BL-CSL326
Max. machineable bar dia.		mm	Φ32(opt.:Φ36)
Main spindle bore		mm	Φ36
Max. machineable length	Rotary guide bushing	mm	310(one time feed)
	Guide bushless	mm	2.5×ΦD
Max. face drilling dia.		mm	Φ13
Max. face tapping dia.		mm	M12
Main spindle max speed		rpm	6000
Main spindle motor		kw	6.3
Main spindle index		/	C axes(continuation)
Back spindle max speed		rpm	6000
Back spindle motor		kw	4.2
Back spindle index		/	C axes(continuation)
Radial type live tool max speed		rpm	4800
Rapid moving speed(X1/Y1/Z1/X2/Y2/Z2)		m/min	24/30/30/30/None/30	24/30/30/30/24/30
Repeat positioning accuracy		mm	≤0.003
O.D. tool		mm	6 position 16
Main spindle side axial drilling tool(fixed type)		mm	4 position ER20
Main spindle side radial type live tool		mm	3 position ER16+1 position ER20
Back spindle side back drilling tool(fixed type)		mm	4 position ER20	4(ER16)(opt: live tool)
Back spindle side axial type live tool		mm	/	4(ER16)
Back spindle side axial type live tool max speed		rpm	/	6000
Coolant pump		kw	0.46
Overall size		mm	2610×1640×1920
N.W.		kg	3800	3900

Main parts brand:

Item	Brand
CNC controller	TAIWAN-SYNTEC
Servo electro-spindle	TAIWAN
Servo motor&driver	TAIWAN-SYNTEC
Spindle encoder	TAIWAN-SYNTEC
Spindle bearing	JAPAN-NSK/NTN P4 class
Ball screw bearing	JAPAN-NSK/NACHI
Ball screw	TAIWAN HIWIN/JAPAN-THK
Linear guideway	TAIWAN HIWIN/JAPAN-THK
Lubrication system	JAPAN-HERG
Main electricity parts	FRANCE-SCHNEIDER
Pneumatic parts	TAWAN-AIRTAC
Lock nuts	TAIWAN-YINSH
Shaft coupling	GERMANY-KTR

Standard configuration:
- SYNTEC 220TB CNC controller
- Rotary guide bushing
- Dual spindle
- Y2 axes(for CSL326)
- Parts catcher& convey belt
Optional configuration:
- High pressure coolant system
- Oil mist collection system
- Angular live tool
- Automatic chip conveyor
- Automatic bar feeder
Other models choice:
All our machines range:
