Outdoor Armored Singlemode Fiber Optic Cable with G652D Fiber HDPE Jacket GYXTW with Factory Price

Product Description

Outdoor Armored Singlemode Fiber Optic Cable with G652D fiber HDPE Jacket GYXTW Product Description

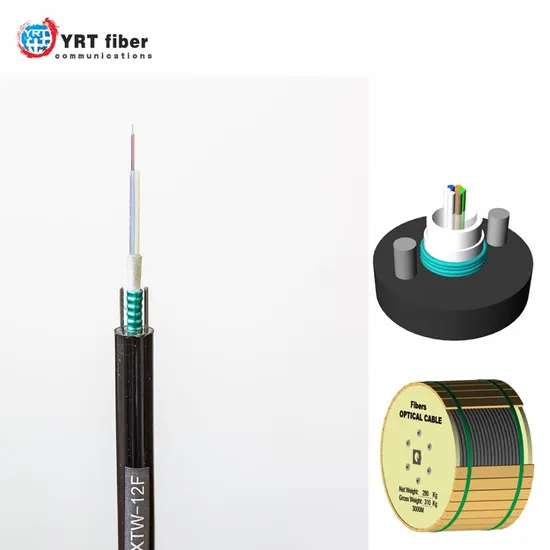

Outdoor Armored Singlemode Fiber Optic Cable with G652D fiber HDPE Jacket GYXTW
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Detailed Photos
Product Parameters
Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20ºC)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength		≤1260nm	≤1480nm
Storage/Operating temperature		-40ºC ~+70ºC

Technical Parameters

Model	Fiber Count	Outer Diameter (mm)	Weight (kg/km)	Tensile Strength Long/Short term N	Crush Resistance N/100mm	Bending Radius Static/ Dynamic mm
GYXTW-4	4	8.0	95	600/1500	300/1000	10D/20D
GYXTW-6	6	8.0	105	1000/3000	1000/3000	10D/20D
GYXTW-8	8	8.0	132	1000/3000	1000/3000	10D/20D
GYXTW-12	12	8.0	148	1000/3000	1000/3000	10D/20D

Factory & Production
Packaging & Shipping
Company Profile
Certifications
FAQ
PLEASE DO NOT HESITATE TO SEND US MESSGAE FOR DETAIL PRICE!

---
