Hot Sale Laser Spot Welding Machine for Jewelry Repairing Electronic Component Repair

Product Description

APPLICATION
INDUSTRY:
Precision welding on various tiny parts, for example, jewelry, electronics, communication, precision metails, watches and also can be used to fill blister of false tooth, etc.
MATERIAL:
Gold, silver, titanium, stainless steel, copper, aluminum and so on.
TECH PARAMETERS

Parameter	Unit	Data

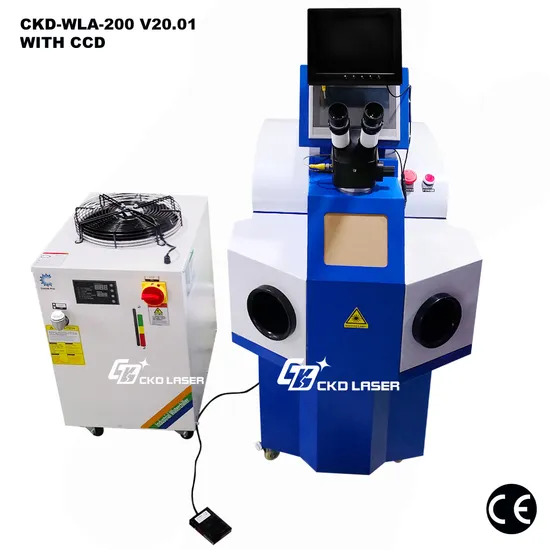

Type		CKD-WLA-200
Laser power	W	200
Working medium		Nd:YAG
Central Wavelength	nm	1064
Pulse frequency	Hz	1-40
Pulse width	ms	0.1-20
Electricity	A	60-300
Min. output power	W	10
Single pulse energy	J	80
Ocular multiple	times	10
Cooling mold		Water cooling
Water chiller		Outside
Power Source Requirement		90-240V/50-60Hz/2KVA
Working temperature	ºC	25±2
Dimension	mm	1010*550*1220 (machine)
		700*360*590 (includes the size of filter vat)
Weight	Kg	185 (with outside water chiller)

OPTIONAL STANDBY PARTS OF CONSUMPTIONS
ADVANTAGES
* Precision weld without surface touch.
* Small heat-affected zone.
* Data adjustable and easy operation.
* Professional desingn, convenient to metal recycle.
* Helthy, use adcantaced automatic light shielding system, eliminating light stimulating to eyes.
* 10X microscope magnification, cross cursor indicating, the shielding gas output in synchronization with the laser, assure good appearance of solder joint.
PACKIGN&SHIPPNG
SAFETY PROTECTIVE INNER
PACKING AND OUTER PACKING
SEPARATELY SAFTY PACKING TO SAVE YOUR SHIPPING CHARGE
