Mini Digital Voltmeter Ammeter Voltage Current Meter with CT AC60-500V 0-100A 20-75Hz

Product Description

Product Description

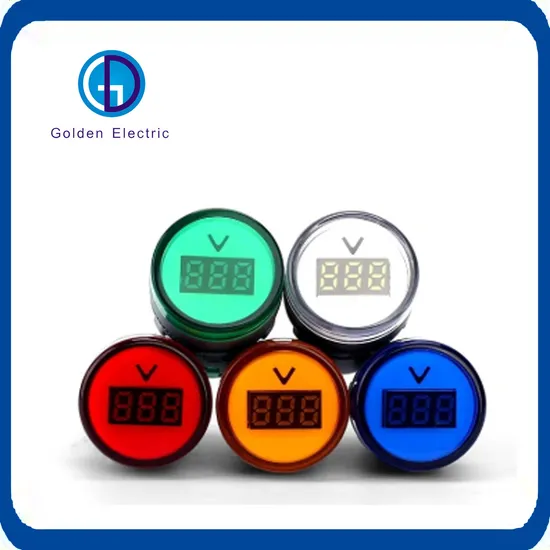

Digital Indicator Lamp
Voltmeter/Ammeter/Frequency Meter
3in1 Function with Current Transformer
1)Working Condition
1. ambient temperature:-25ºC-+55ºC,2. relative humidity:≤98%,3. nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g4. pollution degree is 3, installation g roup is III5. "TH" marked can work at damp-heat environment.
2)Technic data
1.Power frequency withstand voltage:2.5kv/1min(effective AC value),2.insulation resistance:≥ 22MΩ,3.Allowable voltage fluctuation: ± 20%,4.Continuous operating life: ≥30000H.5.Brigtnss: ≥100cd/m2,6.CTI≥600,7.Protection degree of the head IP65, IP67 is available on request,
8.Applying frequency:AC20-75Hz.
Application
It can be used as signal indication, warning signal, accident signal and other signals in the line of electric power, telecommunication, machine tool, ship, textile,printing and mining machinery.
Product Parameters
AC Voltmeter

Product Name	Digital AC Voltmeter
product specification	AD16-22DSV
Hole Size	22mm
Color	Red/Orange/Green/White/Blue
Rated power	0.5W
Voltage range	12V-500V AC
Ambient temperature	-25ºC-+65ºC
Relative humidity	<=98%
Display method	LED bright digital display
tolerance scope	+-5V

DC Voltmeter

Product Name	Digital DC Voltmeter
product specification	AD101-22VM
Hole Size	22mm
Color	Red/Orange/Green/White/Blue
Rated power	0.5W
Voltage range	5V-60V DC
Ambient temperature	-25ºC-+65ºC
Relative humidity	<=98%
Display method	LED bright digital display
tolerance scope	+-5V

AC frequency meter

Product Name	Digital AC frequency meter
product specification	AD101-22HZ
Hole Size	22mm
Color	Red/Orange/Green/White/Blue
Rated power	0.5W
Voltage range	AV24V-500V
Ambient temperature	-25ºC-+65ºC
Frequency Range	0-99Hz
Display method	LED bright digital display
product weight	18.5g

AC ammeter Double display voltage and current meter

Product Name	Digital AC Voltmeter	Measure current	0-100A	Product Name	Digital display voltage ammeter	Measure current	0-100A
product specification	single phase AC	Use voltage	20-380V	product specification	single phase AC	Use voltage	AC60-380V
Hole Size	22mm	refresh rate	About 200ms/time	Hole Size	22mm	refresh rate	About 200ms/time
Color	Red/Orange/Green	Instructions	A load line goes through the transformer	Color	Red/Orange/Green	tolerance scope	+-1A;+-5V

Noted:Can not used in the electric environment with frequency conversion , high frequency, strong harmonic interference signal.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you for understanding.
Best selling
Packaging & Shipping
Packaging Details:
Standard Export Package
Shipping:
1. By Air or by Sea for batch goods,Airport/ Port receiving;2. Customers specifying freight forwarders or negotiable shipping methods!
Delivery Detail:
Shipped in 7 days after payment
