Low Voltage Feeder Monitoring Device - Communication Unit

Product Description

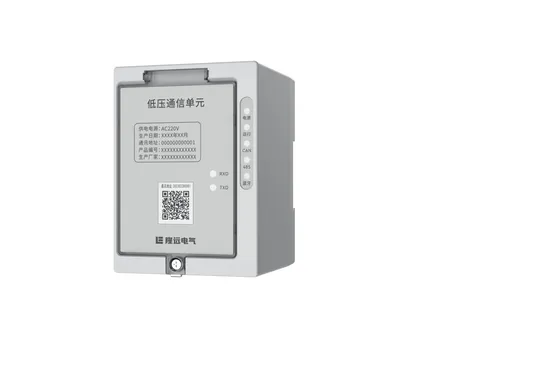

Low voltage feeder monitoring device - communication unit 1.Product profile
The low-voltage feeder monitoring device consists of a communication unit, a power module, and a monitoring unit. The communication unit is generally installed in the distribution cabinet, column mounted JP cabinet, or low-voltage cable branch box. It serves as a data aggregation gateway to achieve upstream communication through carrier modules, communicate with downstream monitoring units through CAN bus, and achieve local maintenance of the system through Bluetooth interface. The number of monitoring units that can be connected is not less than 64; The power module provides DC power, CAN bus, and sampling voltage to the monitoring unit through a cascaded interface. A single power module can be connected to no less than 10 monitoring units; The monitoring unit is connected to an external current transformer to achieve current detection function, connected to the voltage sampling signal output by the power module to achieve voltage detection function, connected to a switch input to achieve station status monitoring, with functions such as topology characteristic signal transmission, characteristic signal analysis, and phase sequence recognition.
2.Product specifications

performance parameters		performance indicators
Operating power supply	Rated voltage	AC 220V (allowable deviation -30%~+40%).
	Power consumption	Static power consumption: ≤2VA, active power ≤1.5W
		Dynamic power consumption: ≤4VA, active power ≤3W
environmental conditions	ambient temperature, humidity	Temperature range: -40~+70°C
		Maximum rate of temperature change: 1.0°C/min
		Relative humidity: 10 to 100%
		Maximum absolute humidity: 35g/m³
	the environment in which it is used	There is no danger of explosion, no corrosive gases or conductive dust, no presence of severe mold, and no source of severe vibration or shock.
	storage temperature	-40ºC~80ºC
Clock	Daily error	The internal clock accuracy shall be better than 0.5s/d, the
Accuracy
Maintenance	parameter reading, remote upgrading	Equipped with the function of parameter reading and modification through Bluetooth and RS485 communication interface.
		with the ability to upgrade itself and its access equipment locally and remotely
		It has the functions of adding and deleting access devices, as well as querying and modifying access device parameters.
Reset	Hardware	Press and hold (>3s) the reset button for hardware reset, the
	Software	software remote reset

3.Selection specifications

function module	Serial number	function point	function point descriptions	communication module
Telemetry	1	Incoming and outgoing	With 4-way open-in telemetry status	√
communication interface	2	CAN communication	Standard configuration of 1 road for the lower cascade multiple power modules, transmission downlink monitoring unit support through the CAN interface to achieve online upgrade program	√
	3	debugging interface	Support 1 RS485 interface for product debugging	√
	4	Bluetooth interface	Supporting the maintenance of communication units and monitoring units through the Bluetooth interface	√
	5	HPLC interface	Supporting the maintenance of communication units and monitoring units through the carrier interface	√
Output	6	DC Output	Provide DC12V±0.5V power output interface externally, with load capacity not less than 300mA	√
Note: "√" indicates that this function is standard, "○" indicates that this function is optional

4.Product installation and schematic diagram
5.About our service * We could provide 7* 24-hour phone call after-sales service.
* We provide a 2-year guarantee time and will change the meter for you within 1 year if there's something wrong with the product. Except for natural disasters or man-made reasons.
* Recommend the most advanced application technology and management model in the industry to customers, and provide customers with detailed solutions. 6.Package and ship

---
