Cable Preassemble Bt 3X70+54.6+2X16mm2 Alu Aerial Bundled Cables Factory Price

Product Description

Product Description

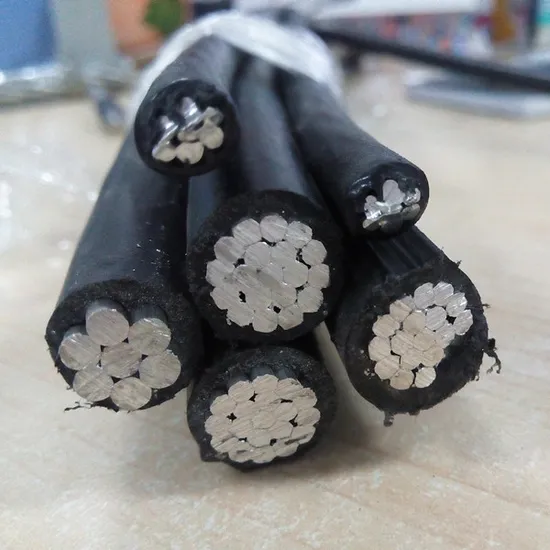

Cable Preassemble Bt 3X70+54.6+2X16mm2 Alu Aerial Bundled Cables
Standard
IEC60502, IEC61089; NF C33-209; GB 12527-9; ASTM B231, ASTM B232, BS215; DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.
Application
The cable as a newtype aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting. To be used at cotages of 600V phasetophase or less and at conductor temperatures not to exceed 75ºC for polyethylene insulated conductors or 90ºC for cross-liked polyethylene(XLPE) insulated conductors.

Specification
Concentric strand aluminum wires as phase conductor; AAAC(all aluminum alloy conductors) or ACSR(aluminum conductor steel reinforced) as messenger (Neutral) core;Phase conductor is insulated by XLPE or HDPE or PVC.
It meets or exceeds the following specifications:
1). Aluminum Wire, 1350-H19 for Electrical Purposes.
2). Aluminum Conductors, Concentric-Lay-Stranded.
3). Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4). Concentric-Lay-Stranded 6201-T81 Conductors.
5). Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

Type of XLPE(PE) insulated ABC cable (service drop)
XLPE(PE) insulate cable (service drop)covers mainly three types:
Duplex Service Drop
Triplex Service Drop
Quadplex Service Drop
Construction
The basic construction is as follows:
3 power cores consisting of standard aluminum conductors, insulated with XLPE insulation
+ One sheath lighting aluminum conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanized steel wire also.
The purpose of messenger wire is:
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

ABC cable with AAAC messenger core

SPEC mm2	conductor structure					Approx.
	Phase	Neutral		insulation	insulation	Overall
	(Compacted AL)	Aluminium	Steel	material	Thickness	Diameter
	(No./mm)	(No./mm)	(No./mm)		(mm)	(mm)
1x16+1x16	7/1.72	6/1.72	1/1.72	XLPE	1.2	12.5
1x25+1x25	7/2.15	6/2.15	1/2.15		1.2	14.9
1x35+1x35	7/2.54	6/2.54	1/2.54		1.4	17.5
1x50+1x50	7/2.92	6/2.92	1/2.92		1.4	20.1
1x70+1x70	19/2.15	12/2.15	17/2.15		1.4	23.6
1x95+1x95	19/2.54	12/5.24	17/5.24		1.6	27.6
2x16+1x16	7/1.72	6/1.72	1/1.72	(HDPE)	1.2	14.2
2x25+1x25	7/2.15	6/2.15	1/2.15		1.2	16.7
2x35+1x35	7/2.54	6/2.54	1/2.54		1.4	19.7
2x50+1x50	7/2.92	6/2.92	1/2.92		1.4	22.5
2x70+1x70	19/2.15	12/2.15	7/2.15		1.4	26.1
2x95+1x95	19/2.54	12/5.24	7/5.24		1.6	30.5
3x16+1x16	7/1.72	6/1.72	1/1.72		1.2	16.3
3x25+1x25	7/2.15	6/2.15	1/2.15		1.2	19.1
3x35+1x35	7/2.54	6/2.54	1/2.54		1.4	22.5
3x50+1x50	7/2.92	6/2.92	1/2.92		1.4	25.7
3x70+1x70	19/2.15	12/2.15	7/2.15		1.4	29.7
2x95+1x95	19/2.54	12/2.54	7/2.54		1.6	34.6

Our company
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.
Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.
Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.
Our certificate
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.
2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.
3.Q:How can I get some samples?
A: Contact me on below,Determin sample and address for shipping.
4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.
5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.
6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.
7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.

---
