Solar Light Into Electricity Solar Roof Tiles No Mounting Brackets Make Money by Solar Power

Product Description

Specifications

PHYSICAL FEATURES
MODEL	JS87DG	TILE SIZE	1260*480 MM
TILE WEIGHT	16.5 KG	GLASS	TEMPERED/3.2MM
CELL SIZE	182*91MM(5*12)	JUNCTION BOX	≥ IP67
CABLE	PV 4 MM2	CABLE CONNECTOR	MC4
ELECTRICAL PERFORMANCE PARAMETERS (IN STC)
CELL TYPE	MONOCRYSTALLINE	CELL EFFICIENCY	23.10%
MAX POWER	87W/PC	MODULE EFFICIENCY	18.40%
VOLTAGE	13.7V	CURRENT	6.35A
OPEN-CIRCUIT VOLTAGE	16.2V	SHORT-CIRCUIT CURRENT	6.75A
RATING FEATURES
COLOR	BLACK + CUSTOMIZABLE	LOAD CLASS	2400 PA
FIRE-PROOF CLASS	CLASS A	HAIL-RESISTANT CLASS	25MM/23M/S
WORKING TEMP	-40ºC ~ 85ºC	WORKING HUMIDITY	0-80%
CERTIFICATIONS
IEC61215, IEC61730, CGC, MCS, SII, BIS, INMETRO, SNI, CEC, JET, CARBON FOOTPRINT, etc.

Benefits
Why Sangobuild Solar Roof?

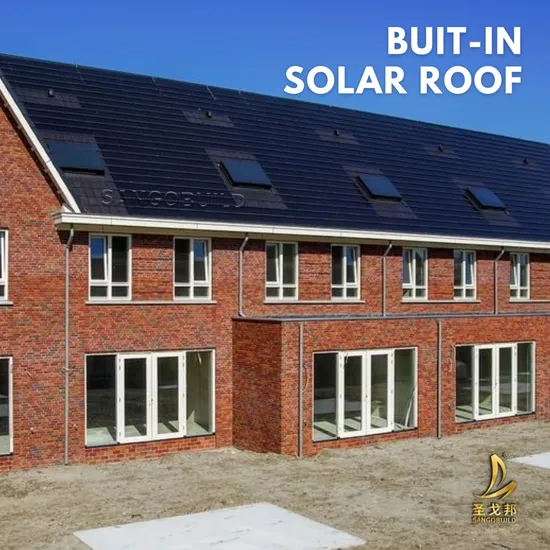

IT'S A ROOFING TILE! Sangobuild Solar Panel is a kind of roof tile and a construction material. It not only can generate electricity power, but also can work as your roof cover to protect your house from rain, wind hail, etc. It saves your roofing cost. And you don't need to set up mounting racks on the roof to install solar tiles, which could affect the roof beauty to some extent. EXCELLENT PRODUCT FEATURES As a Building-Integrated Photovoltaic solar roof tile, our product not only has great electricity power generation features, but also has excellent weathering resistant features. - High efficient whole roof covering - Class A waterproofing - Hail Resistant - Wind Resistant - More than 60 years lifespan - Aesthetically Appealing PROFESSIONAL TEAM Our team started the business of solar energy in 1999, and is leading the technology in the industry. We not only has the most professional team for solar energy, but also has the most professional team for roofing. We combines the solar panel and the roof tile and make it a new product to save the cost and make your roof more beautiful and functional!

---
