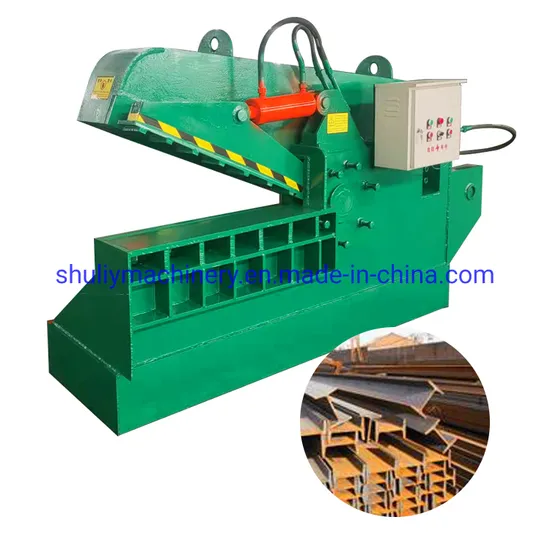

Hydraulic Crocodile Shearing Machine

Product Description

Scope of application:
1. This equipment is mainly used in the recycling and processing industry of waste materials. Small and medium-sized steel mills can cut various cross-section shapes such as round steel, square steel, channel steel, angle steel, I-beam, steel plate, steel pipe and other scrap metals in cold state.
2. This equipment adopts hydraulic transmission. Compared with the mechanical transmission shearing machine, it has the advantages of small size, light weight, low inertia, low noise, smooth movement, safe operation and use, and easy to realize overload protection.
This equipment has manual and automatic functions. The operation and control are convenient and simple, and the scissors mouth can be cut and stopped at any position in the working process. And according to the size of the material to be cut, the size of the cutting opening can be arbitrarily controlled to achieve high work efficiency.
The equipment has reasonable technical parameters, wide application range and low energy consumption. It is widely used in scrap metal recycling and processing industry and metal shearing in small and medium-sized steel plants to provide high-quality charge for furnace smelting.Technical parameter of machine

No	Technical parameter		Mark
1	Blade working width	1200mm
2	Cutting pressure	250 tons
3	Power	22kw
4	Oil pump	80*1
5	Number of cuts	8-12 times/mim
6	Voltage	380V/3PH,50Hz
7	Size	2300*1200*2200mm
	Weight	4100kg
8	Operate type	Manual
