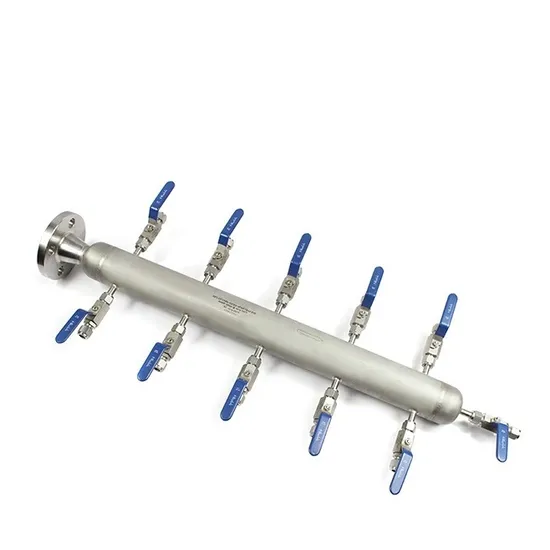

Nai-Lok Stainless Steel Air Header Distribution Manifolds 6/10/12 Outlet Ways Ball Valve

Product Description

The air header distribution manifolds are designed for use with air only and are supplied with a number of lockable ball valves on opposite sides, right side or left side only to prevent unauthorized access. Features Working pressure up to 300 psi (20.6 bar)
Working temperature from -40°F to 450°F(-40ºC to 232ºC)
Lightweight ball valve design. Large clearance between stem and disc allows the disc to move freely
304/316L Stainless Steel body
Welded body construction
Inlet Connection: Flanged and threaded optional
Handle colors optional
Main applications in the petrochemical field: Cryogenic service. Low temperature. Ambient temperature. High temperature. Corrosive fluids. High pressures. Samplings from line. Fluids injection. Material Of Construction

Type Air Headers
Structure Root
Customized support OEM
Port Size 3/4in, 1in, 1 1/2 in
Power Manual
Temperature of Media High Temperature
Brand NAI-LOK
Media Gas
Standard or Nonstandard Standard
material 316/304
Maximum working pressure 300 psig/20.6bar
handle color red, yellow, blue
main line Sch 40 pipe
Certification ISO9001:2015
Outlet quantities OEM
Inlet/ outlet typ Female NPT

---
