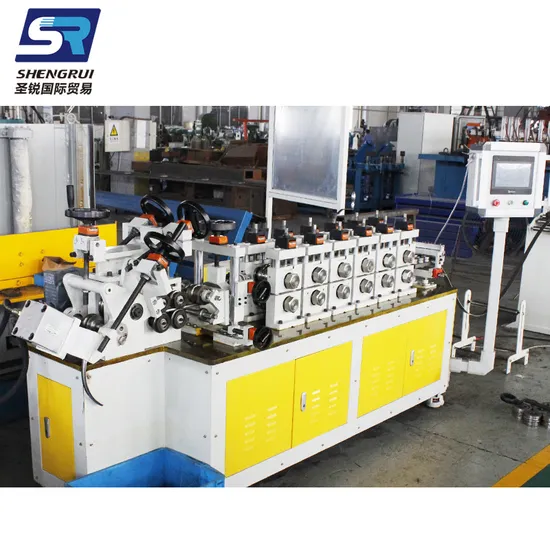

Professional Metal Profile Production Line Wheel Rim Roll Forming Machine

Product Description

Professional Metal Profile Production Line Wheel Rim Roll Forming Machine Product Description
Form: High-precision guide column bracket gear chain drive(inverter motor control)
Function and structure: sheet will from through 8 rollers, and gradually roll into the finished bracket. By the variable frequency motor, reducer, gear, roller group composition. The lathe with welded structure, to stress treatment;
The roller adopts the combination structure, the speed difference and the forming resistance are small, the steel surface wear is small; the roll process design uses the imported software, the computer design, and carries on the FEA analysis, guarantees the piece shape precision, does not scratch the sheet material. Roller with Cr12MoV forging, the overall quenching CNC machining, hardness uptoHRC58-62; with high strength, high hardness, high precision, using life and so on.
Quick change structure
Pass pitch: 200mm
Rack:Precision guide column bracket
Roll shaft diameter:45mm
Material: 42CrMo
Lubrication system

No	Equipment Name	Quantity	Motor Power (KW)
1	Automatic Uncoiler	1 set	3
2	Precise leveling machine	1set	1.5
3	Roll Forming Machine	1set	15
4	Bending, cut off	1set	5

No	Item	Brand
1	PLC	OMRON
2	HMI	OMRON
3	Electric Elements	Schneider/OMRON/ Keyence/ Siko
4	Bearing	Timken,Schaeffler
5	Variable frequency motor	SIEMENS
6	Rotary encoder	OMRON
7	Digital position display	SIKO

Company Information
FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: What is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.

Warmly welcome to visit our factory Zhangyun Machinery

---
