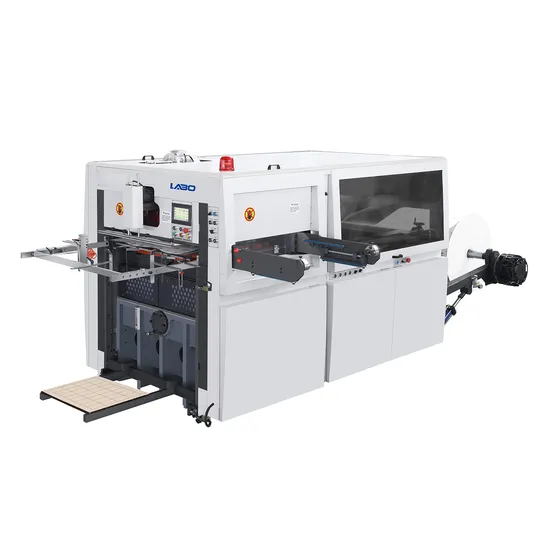

High Speed Paper Cup Paper Bag Paper Box Roll Die Punching Cutting Machine with Embossing

Product Description

Introduction:
High Speed Paper Cup Paper Bag Paper Box Roll Die Punching Cutting Machine with Embossing. It is suitable for creasing, die-cutting various cigarette case, medicine case, envelopes, paper cup, paper bowl, gift bags and various paper products.
It can finish paper embossing, creasing, die-cutting and automatic collection all steps in one time.
It is widely applied in producing cigarette cases, pharmaceutical packaging boxes, envelopes, paper cup fans, paper bowls and various paper products with high precision and stability by die cutting creasing and embossing.
It could automatically complete the full process of die cutting, creasing, embossing and stack collection.
Product Made from Machine:
Main Technical Parameters:

(Medium Speed):

Model		LBM-970x550	LBM-1080x640	LBM-1200x640	LBM-1400x780
Max Cutting Area	mm	950x510	1050x600	1160x600	1360x740
Cutting Precision	mm	0.20	0.20	0.20	0.20
Paper Gram Weight	g/ m³	120-400	120-400	120-400	180-600
Production Capacity	times/min	90-140	90-140	90-140	90-120
Air Pressure Requirement	Mpa	0.5	0.5	0.5	0.5
Air Pressure Consumption	m³/min	0.25	0.25	0.25	0.25
Max Cutting Pressure	T	150	150	150	280
Weight	T	5.5	6	6.5	8
Max Roller Diameter	mm	1600	1600	1600	1600
Total Power	kw	12	12	12	14
Dimension	mm	4500x2200x1800	4500x2400x1800	4500x2600x2000	6000x3500x2200

(High Speed):

Model		LBM-970x550	LBM-1080x640	LBM-1200x640	LBM-1400x780
Max Cutting Area	mm	950x520	1050x600	1160x600	1350x740
Cutting Precision	mm	0.20	0.20	0.20	0.20
Paper Gram Weight	g/ m³	120-600	120-600	120-600	180-600
Production Capacity	times/min	90-140	90-140	90-140	90-120
Air Pressure Requirement	Mpa	0.5	0.5	0.5	0.5
Air Pressure Consumption	m³/min	0.25	0.25	0.25	0.25
Max Cutting Pressure	T	280	280	280	280
Weight	T	7.5	8.5	9.5	11
Max Roller Diameter	mm	1600	1600	1600	1600
Total Power	kw	14	14	14	20
Dimension	mm	5500x2300x1800	5500x2500x1800	5500x2800x2000	7000x3500x2200

Machine Detailed Pic for Reference:
Configuration:

Stepper motor	Schneider (Germany)
Pressure adjusting motor	Taiwan
Servo driver	Schneider (Germany)
Color Sensor	Sick(Germany)
PLC	Schneider (Germany)
Frequency converter	Schneider (Germany)
Photoelectric switch	Leuze(Germany)
Main air cylinder	AirTAC (Taiwan)
Solenoid valve and other parts	AirTAC (Taiwan)
Pneumatic clutch	China
Main bearings	Germany
Main motor	FEIDA

Packing and Loading of Machine:

---
