High Quality 15L 20L Detergent / Shampoo Bottle Blow Molding Machine

US$290,000.00 1 Set (MOQ)

Basic Info.

Model NO.
ABLD120
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Application
Bottle
Max. Product Volume
230L
Blow Moulding Type
Extrusion Blow Moulding
Place of Origin
Jiangsu, China (Mainland)
Brand Name
Apollo
Certificate
Ce
Transport Package
Film Packing
Specification
ISO9001
Trademark
APOLLO
Origin
China
HS Code
8477301000
Production Capacity
4 Set/Sets Per Month

Product Description

Product Description

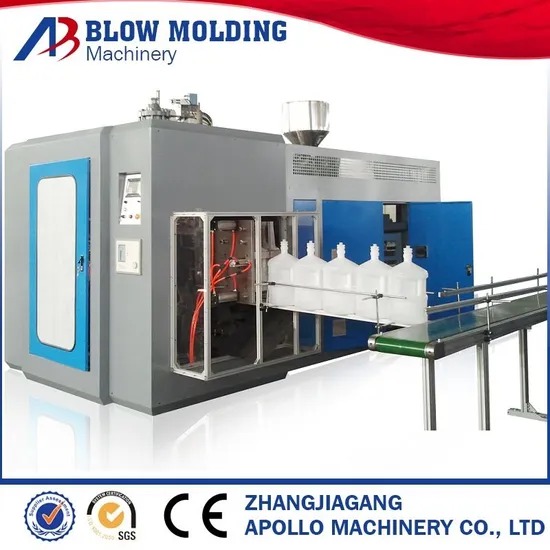

Tanks Extrusion Blow Molding Machine 120L:
ABLD120 plastic drum making machine was specially designed for making plastic water tanks,chemical drums,plastic cans, lubricant oil drums,plastic drums, plastic toys and other plastic containers not over 230L.
The features of this machine:
(1)It is suitable for producing PE,HDPE,PP so on,plastic containers and bottles in all shapes are available,the max.product volume is up to 230L.
(2)Single station single die head design,very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5)Accumulation die head, 100 point parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
(8)Equipped with germany servo system , can save more than 40% power and very stable .
Product Parameters
Perfect function with economic investment.
Max. Product volume 230 liters
Dry cycle 300pc/h
Screw diameter 120mm
Screw L/D ratio 33 L/D
Screw drive power 132 KW
Screw heating capacity 36 KW
No.of heating zone 6zones
Output of HDPE 320 KG/H
Oil pump drive power 37KW
Clamping force 900 KN
Max.size of mold 1400X1600mm
Mold stroke 700-1600mm
Max.die diameter 580mm
Die heating power 36 KW
Die heating segments 6zones
Blowing pressure 0.8mpa
Air volume 1.6 M³/MIN
Cooling water pressure 0.3mpa
Water consumption 180 L/MIN
Size of machine 7.5 X 3.5 X 5.5m
Weight of machine 36ton
