Stainless Steel Tilting Type Electric Heating Layered Pot

Product Description

stainless steel electric/steam/gas heating jacket kettle

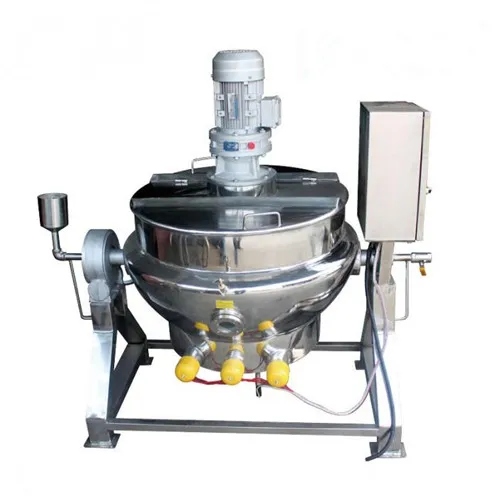

Stainless Steel Tilting Type Electric Heating Layered Pot
Materials are all sanitary stainless steel 304 or 316L .
Humanized structure design and easy to operate .
Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation .
Configuration of tank :
Quick open manhole .
Various types of CIP cleaners .Fly and insect resistant sanitary breathing cover .Adjustable triangular bracket .Dismountable materials input pipe assembly .
Thermometer (According to customer requirements ).Ladder (According to customer requirements).Paddle blender .Liquid level meter and lever controller (According to customer requirements) .
This equipment is used widely for pharmacy,food,chemical industry. To cook ,boiling ,concentrator .according to client requirement :it can use hot steam and electrical heating sources .Also it can add the agitator and cover .All depend on clients
This equipment consist of boiler body,stir device ,worm wheel and worm rod .the boiler body can be rotated within 180 degree. all the materialsin contact with media used stainless steel featuring good anticorrosion and duraility.which are in accordance with GMP standard.We can also make the jacketed kettle or jacketed boiler according to your special demands.
Technology data :

	KQ50	KQ100		KQ150	KQ200	KQ300	KQ400	KQ500
Capacity L	50	100		150	200	300	400	500
Jacketed pressure Mpa	< 0.2
Evaporation capacity kg/h	30		40	50	65	75	100	150
Heat area m 2	0.4		0.45	0.76	1.0	1.15	1.44	1.90
Energy consumption kg/h	33		44	55	72	90	110	165
N.W. kg	170		190	210	230	320	360	485
LxWxH mm	720X600X830		800X650X830	1350X650X1100	1400X700X1100	1450X800X1110	1500X850X1140	1600X900X1150
