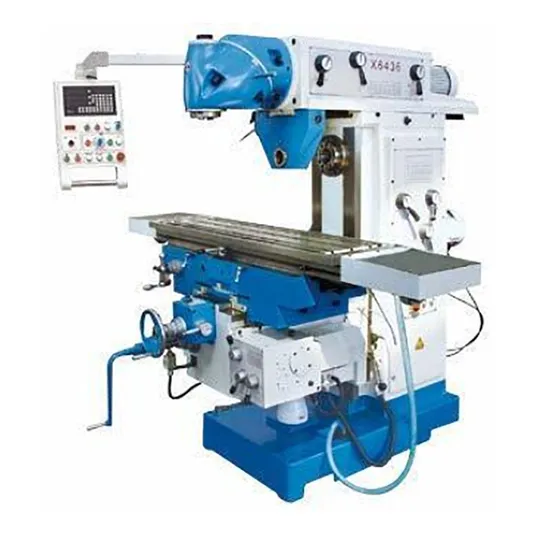

X6436A/X6436, Universal Swivel Head Milling Machine

Product Description

Product Description

X/Y/Z servo motor drive
Product Parameters

	specifications	X6436A		X6436
	Table size	1650X360		1650X360
	Longitudinal/traverse/vertical travel	1300/320/420		1300/300/400
	T-slot	3/14/95		3/14/95
	Max.table load	350		350
	Spindle taper	7:24 ISO50		7:24 ISO507:24 ISO50
	Spindle speed	H:12 Steps 58- 1800	V: 12 Steps 60- 1750	H:12 Steps 58- 1800	V: 12 Steps 60- 1750
	Distance from horizontal axis to table surface	0-420		0-400
	Distance from vertical spindle nose to table surface	170-590		175-575
	Table swivel degree	+/-35.		+/-35.
	Ram travel	500		500
	Longitudinal/cross working feed	25-800		22-420(X) 22-393(Y)
	Vertical working feed	8-267		10- 168(Z)
	Longitudinal/cross rapid feed	1200		1290(X) 1205(Y)
	Rapid traverse vertical	400		513(Z)
	Spindle motor power	4(V) / 5.5(H)		4(H / V)
	Feed servo motor	1.8, 11.5N.M		/
	Overall size (LXWXH)	2550x2161x2102		2070X2025X2020
	Net weight	2850		2480

Detailed Photos
