Mini Bench CNC Lathe Machinery Tool

Product Description

Mini Bench CNC Lathe Machinery Tool
CNC Lathe Application
The Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK6336 (S) is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace, military and other industries on the rotary parts for efficient, high-volume, high-precision processing. Processing accuracy can reach 7 level.
CNC Lathe Features
Mini Bench CNC Lathe Machinery Tool
1.45 degree slant bed cnc lathe
2.High accuracy Taiwan linear guideways
3.Chip conveying capacity is large and convenient ,customer could choose chip conveying in the right or in the back
4.Spindle unit has two types ,the heavy duty cutting type and the high speed type.
5.The first one is suitable for bearing and gear processing .
6.The second type is suitable for high speed and jhigh precision processing.
7.Customers could choose any type of them
8.Screw pre-stretching structure
9.Gang type tool post
10.Optional turret
Technical Parameter

Model	TCK6336(S)
Max swing over bed	390mm
Swing over cross slide	130mm
Max processing length	200/400mm
X/Z axis travel	400/300(500)mm
Spindle unit	140/170mm
Spindle nose	A2-5
Spindle bore	48/56mm
Bar capacity	40/45mm
Max spindle speed	4000/3500mm
Chuck size	6/8''
Spindle motor	3.7/5.5kw
X/Z axis repeatability	+0.003mm
X/Z axis feed motor torque	6/6
X/Z rapid traverse	18/15 18/18
Cutting tool shape size	20x20
Guide form	45 degree oblique track
Total power capacity	9/11
Machine size	2200/2390x1530x1780mm
Weight	2200/2500kg

Details

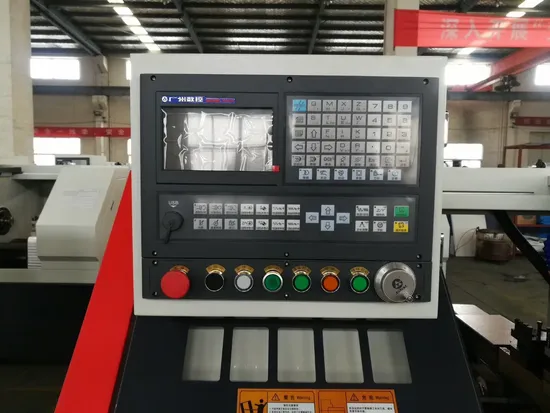

Hot Sale Small CNCMini Bench CNC Lathe Machinery Tool with details as follows
Package
Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK6336 (S) with standard export package
FAQ
Q: How about your machine quality?We are worry about the quality.
A: Shandong Schuler Heavy Machinery Co.,Ltd focused on cnc lathe machines for up to 10 years, is China's mature brand. We "quality of survival" management philosophy, Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK6336 (S) has won more and more customers love and support, we have a field factory, on the quality, you are welcome to visit the field at any time.
Q:Whether the machine price can be more discount?
A: Shandong Schuler Heavy Machinery Co.,Ltd is always provide high quality, Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK6336 (S), the price is different according to different cnc control system.
You are welcome to consult at any time.

Q:How about your manufactory in China ?
A:Shandong Schuler Heavy Machinery Co.,Ltd is located in Tengzhou,Shandong province that is the leading area in China .If you need more information about us or Hot Sale Small CNC Turning Center Slant Bed cnc Lathe TCK6336 (S), we would like to talk with you.

---
