CNG Cylinder CNC Threading Machine

Product Description

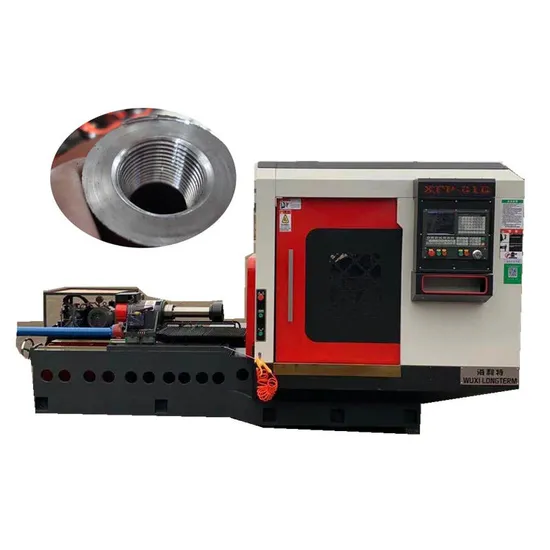

CNG cylinder CNC threading machine
Product Description
Product Parameters

No	Item	Data
1	Diameter range	φ141mm--φ356mm
2	Length range	300mm-2000mm
3	Main motor power	5.5KW converter motor
4	Converter motor	z-axis : 10M/MIN	X Stroke:10M/MIN
5	Tool holder	horizontal structure
6	Range of spindle speeds	100-1000r/min

Application

The machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as well as threading, which are realized by NC programming. Single station device is adopted for input and output materials (semi-automatic); The workpiece clamping adopts the front top bowl positioning.

Step 1.Radial facing, cylindrical turning---finish the end face by the outer circular knife and turning of outer chamfer
Step 2.Inside hole--adopts lathe processing of inner hole of inner hole cutter
Step 3.Threading --adopts thread tool

The heavy load structure of rectangular guideway with flat bed body is adopted and the lathe-turning part is dully closed and protected.

Flat slideway: applies flat bed made of high duty cast iron HT250, by ultra audio quenching, provides a stable foundation for the high rigidity of the whole machine, realizes simplicity of chip removal and reliability of protection. And the guideway part is fully protected.

Rectangular guideway :The X and Z direction of machine tool adopts rectangular guideway, the width of Z direction guide rail is 70, the width of X direction guide rail is 60, the span of two guide rail in Z direction is 500MM, and the span of two guide rail in X direction is 280MM. Rectangular guideway has high precision of dynamic positioning, sound dynamic performance, well rigidity and greatly improves production efficiency and machining accuracy.

Related Machines
CNG Gas Cylinder Stamping Machine
Hydraulic system is a two-pump dual hydraulic system (piston pump and gear pump), and the two pumps can operate independently.
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons
(excluding hydraulic system and loading and unloading systems).
2. The bottle body is positioned at the front, the electronic encoder is positioned accurately, the rear is positioned with a screw drive, and the rear cylinder pushes the front The sliding seat moves back and forth on the guide rail.
CNG Gas Cylinder Stamping Machine
Hydraulic system is a two-pump dual hydraulic system (piston pump and gear pump), and the two pumps can operate independently.
1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons
(excluding hydraulic system and loading and unloading systems).
2. The bottle body is positioned at the front, the electronic encoder is positioned accurately, the rear is positioned with a screw drive, and the rear cylinder pushes the front The sliding seat moves back and forth on the guide rail.

Packaging & Shipping
Customers Visiting

Company Profile
FAQ

FAQ
Q: Are you a manufacturer or a trader?
A: Manufacturer
Q: Can the machine be customized?
A: Can be customized according to customer needs
Q: Is it possible to provide on-site installation and how about after-sales service?
A: Yes, we provide after-sales service and installation training services. The site service, such as installation and commission fee will be charged daily: USD100/day/person, the accomodation, food and transportation in Turkey should be at customers plus the return trip air tickets.
Q: Can third-party testing services be provided?
A:Yes BV, SGS, CE are all available

---
