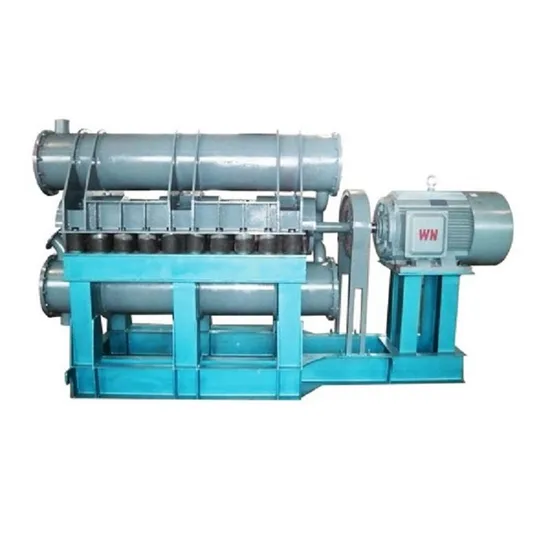

Extra Fine Vibration Pulverizer Grinding Powder Machine Vibration Mill Impact Mill

Product Description

Extra Fine Vibration Pulverizer Grinding Powder Machine

Widely used in chemical, mineral, building materials, metallurgy, abrasives, ceramics, refractory materials, food, health care products, new materials and other industries.
High cost performance, suitable for D50:2.5~150μm grinding

Under the high frequency vibration of high-speed vibration exciter (or vibration motor), the grinding medium (rod, segment and ball) in the grinding cylinder makes strong projectile motion, high-speed rotation motion and slow revolution motion, which causes strong impact, friction and shear action on the materials during the dispersion period, so that the materials are superfine comminuted and evenly mixed.
Suitable for micron grinding of various soft and hard materials with Mohs hardness below 9; Low noise, wear resistance, less pollution; Low installed power, wide application range, high cost performance, suitable for D50:2.5~150μm grinding; It can be used for powder mixing, surface coating modification, mechanochemical modification, etc.
FEATURES AND ADVANTAGES
Available D50:2.5~150μm Suitable for grinding raw materials with Moh's hardness below 9. Compared with ball mill, higher grinding efficiency, small occupation. Particle size can be adjustable by adjusting parameters such as grinding medium, amplitude, and frequency. The finer powder can be given in conjunction with classifier in series. Grinding media and liners can be made of special materials such as high manganese steel, high chromium steel, stainless steel, alumina, zirconia, quartz, etc., which are wear resistant and less pollution. Air spring or rubber spring, instead of hard spring, long service life, good damping effect and low noise. Compact structure and small occupation.easy to disassemble and clean Lower installation power, wide application, high cost-performance. PLC control system, easy operation. Suitable for powder mixing, surface coating,mechanical chemical modification, etc. For heat sensitive and low melting materials, it can be crushed by water cooling or strong cooling. Finer powder can be given if to be used with classifier. Explosion-proof design can be selected to meet the requirements of ultra-fine grinding processing of flammable and explosive oxide materials.
WORKING PRINCIPLE
With the high-speed vibrator or vibration motor, the grinding media (pins, cylpebs or balls) would vibrate in high frequency,
high-speed rotating and slow revolving, which would impact, rub and shear materials around them and make them into fine powder and mix them evenly.
Technical Parameters

Medium and small Amplitude Vibration Mill Technical Parameter
Parameter	MZ10	MZ30	MZ50	MZ100	MZ200	MZ300	MZ500
Chamber Volume(L)	10	20	50	100	200	300	500
Input Particle Size (mm)	5	5	5	10	10	10	10
Produce Size (um)	10-150	10-150	10-150	10-150	10-150	10-150	10-150
Production Capacity (kg/h)	1-5	5-20	10-50	20-150	50-300	100-500	150-800
Power (KW)	0.75	1.5	2.2	3.7	7.5	11	15

Big Amplitude Vibration Mill Technical Parameter
Parameter	MZ100	MZ300	MZ500	MZ600	MZ800	MZ1000	MZ1200	MZ2000
Chamber Volume(L)	100	300	500	600	800	1000	1200	2000
Input Particle Size (mm)	5	5	5	5	5	5	5	5
Produce Size (um)	10-150	10-150	10-150	10-150	10-150	10-150	10-150	10-150
Production Capacity (kg/h)	100-200	200-300	300-600	400-800	500-1000	800-1500	1000-1800	2000-3000
Power (KW)	15	45	55	75	90	110	150	220

Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above is only for selection reference.
Related Engineering Cases




Shandong ALPA Powder Technology Co., Ltd. (abbreviation: ALPA / Equity Code: 171033)
THE WORLD'S LEADING SUPPLIER OF ULTRA-FINE POWDER SOLUTIONS ALPA was founded in 1999.Focus on ultra-fine ultra-pure crushing and classifying research, powder shape control, powder surface modification, and system integration of powder engineering equipment.
In the fields of ultrafine grinding and classification in the pharmaceutical, food, chemical, mineral, new materials, solid waste treatment and other industries, ALPA has mature and fully customized solutions and helps you design the ideal system to meet your needs.







"I don't know how to choose the best for me." IT DOESN'T MATTER
LET US HELP YOU!
The raw material and the particle size, output, and application industry of the finished product determine the choice of equipment and process. As an expert, you will not be unfamiliar with this.If you have any questions, don't worry, please leave us a message, or "Live Chat" in the lower corner of this page, or contact us via our phone or email.





WHO CHOOSE US
By 2018, 37 world top 500 companies, 89 Chinese top 500 companies, 169 national key laboratories and engineering technology research centers have selected ALPA. More than 3,000 customers have chosen us
Q: What service do you supply?
A: 1). We offer consultancy for project feasibility assessment, process flow definition, preliminary layout and factory building plan, project budget, project time schedule, etc.2). We supply sample processing tests in our test station where are equipped with our various machine products, to help clients compare performances of different types of machines or process.3). We supply project engineering, automation engineering and civil engineering.4). We send engineers to the clients' project site and offer on-site technical instruction and supervision during the machine installation, commissioning and test run.Q:How can I trust on your quality?
A: 1). All of the machine be tested successfully in Weifang workshop before shipment.2). We supply one year warranty for all equipment and lifelong after-sales service.3). We can test your material in our equipment before place the order, to ensure our equipment is suitable for your project.4). Our engineers willgo to your factory to install and debug the equipment, they will not be back until these equipment can produce qualified products.Q:Does your company provide Engineers Abroad Service?
A: Sure, we provide it. And we can providefree training for on-site workers.Q:How to train our staff about operation and maintenance?
A: We will provide detailed technical instructive pictures to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.

---
