CNC automatic pointing grinding machine can be convenient debugged and simple operated, one worker operate multiple machines, compare to some domestic similar products, it can save about 70% electricity consumption, save 60% grinding wheel consumption, and can improve 30% output. The machine adopts the most advanced computer and electrical system and hydraulic control system, Equipped with self-developed tool grinding software, automatic grinding pointing angle. All castings of the machine are cast as a whole to maintain the stability and accuracy of the equipment.

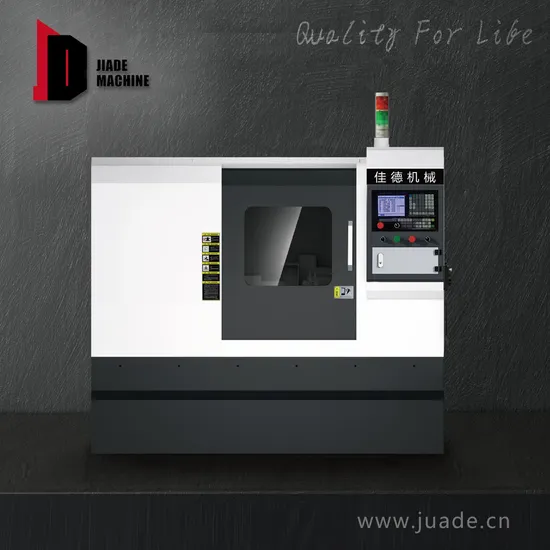

| Model | MJMKX5/CNC Splitter Pointing Grinding Machine NO.MJMKX5 |
| Tool size | 3mm-13mm |
| Machine construction | Single column |
| Axis of motion | X-Axis:300mm |
| Y-Axis:360° |
| Z-Axis:300mm |
| A-Axis:300mm |
| B-Axis:90° |
| Tool length | 205mm |
| Grind wheel diameter | Inner75mm Outter250mm Thickness25mm |
| Spindle type | High-precision electrical spindle |
| Drive system | Pin roller lead screw,direct drive |
| Electrical power | 15KVA |
| CNC data | 700 bus CNC,High-speed SSD,MECHATROLINK protocol, NXP-Rt1176M7 main controller |
| Machine body | High-performance cast iron |
| Machine size | Length:2170mm |
| Width:1680mm |
| Height:1860mm |
| Weight:3000kg |
