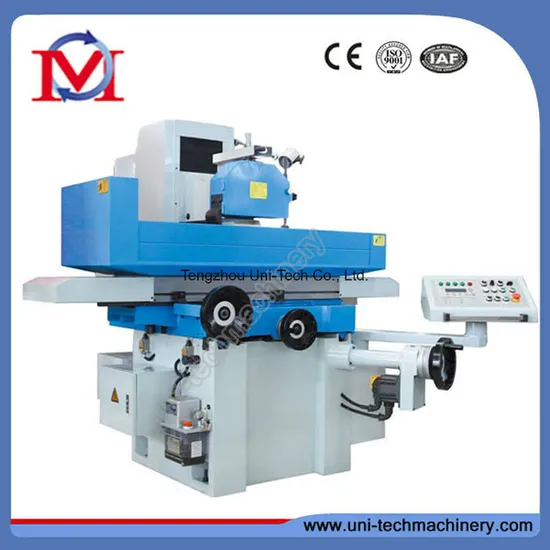

Hydraulic Automatic Feeding Saddle Moving Surface Grinder (SGA3063)

Product Description

Hydraulic Automatic feeding Saddle moving surface grinding machine (SGA3063)
Features of SGA3063 Automatic feeding Saddle moving surface grinding machine:
1.Designed for continuous operation at maximum speed, very quiet operation, maximum accuracy and minimal heat accumulation ensure optimum machining results
2.Grinding spindle runs in maintenance-free preloaded precision angular ball bearings
3.Automatic transverse and longitudinal feed
4.Rapid feed for setup to desired work height(HFS VC)
5.Adjustable roughing, finishing, and spark-out strokes hydraulic longitudinal table movement on Y axis(HFS VC)
6.Double table V-guide in transverse table, V-guide and flat guides in longitudinal table
7.Table guide ways are hardened, ground, and PTFE(polytetrafuorethylene)counterlaminated-ensuring maximum wear resistance
8.High table load capacity for heavy parts
9.External hydraulic unit ensures high temperature stability
10.Automatic central lubrication
Our SGA3063 Automatic feeding Saddle moving surface grinding machine with the different models for your choice:
AH series: Auto cross feed; Hydraulic longitudinal feed; Manual vertical feed
AHR series: Auto cross feed; Hydraulic longitudinal feed; Rapid vertical feed
AHD series: Auto cross feed; Hydraulic longitudinal feed; Automatic vertical feed
SGA3063 Automatic feeding Saddle moving surface grinding machine:

MODEL		Unit	SGA3063AH	SGA30100AH	SGA4080AH	SGA40100AH
			SGA3063AHR	SGA30100AHR	SGA4080AHR	SGA40100AHR
			SGA3063AHD	SGA30100AHD	SGA4080AHD	SGA40100AHD
Table size(W x L)		mm	305x635	305x1020	406x813	406x1020
Max longitudinal travel		mm	765	1130	910	1130
Max cross travel		mm	340	340	450	450
Max distance from spindle center to table		mm	580	580	580	580
Electro magnetic chuck size		mm	300x600	300x1000	400x800	400x1000
Speed of table longitudinal movement		m/min	7-23
Table transverse movement	Auto feed	mm/min	0.1-8
	Rapid speed	mm/min	990
	Feed of handwheel	Mm/div	0.02
Wheelhead vertical movement	Auto feed	mm	(H/AH/AHR model)/0.005/0.01/0.02/0.03/0.04/0.05(Only for AHD model)
	Rapid speed	Mm/min	(H/AH model) /460( Only for AHR/AHD model)
	Feed of handwheel	Mm/div	0.005
Grinding	Speed	rpm	1450(50Hz) 1750(60Hz)
wheel
	Size	mm	350x40x127
Spindle motor		kw	5.5
Hydraulic motor		kw	2.2
Cooling pump motor		kw	0.125
Elevating motor		kw	(AH mode) 0.25(AHR mode) 0.5(AHD mode, servo motor)
Cross feed motor		kw	0.04
Max loading capacity of table		Kg	270	400	500	600
Total rated power		kw	9
Height of machine		mm	1890
Floor space(LxW)		mm	2900x2200	4400x2200	3600x2400	4400x2400
Gross weight		kg	2900	3300	3500	4000
Package dimensions(L x W x H)		mm	2350x2220x2150	2950x2220x2210	2850x2270x2180	2950x2270x2210

Standard accessories:
Wheel flange
Balancing arbor
Wheel exactor
Coolant tank
Working lamp
Tool box and tools
Wheel dresser stand not include diamond pen,
Standard grinding wheel
Leveling wedge and bolt
Standard electro magnetic chuck
Built in electro magnetic chuck controller
PLC(AHD)\PLC auto grinding controller only for AHD models
Y-AXIS WITH STEP MOTOR,
Z-AXIS WITH SERVE MOTOR

Optional accessories:
Electric Magnetic chuck
Balance stand
Wheel flange
Coolant with magnetic separator and paper filter
Parallel wheel dresser screw rod type
We also would like to let you know our warranty about our SGA3063 Automatic feeding Saddle moving surface grinding machine as following:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
SGA3063 Automatic feeding Saddle moving surface grinding machine
Standard export pallet package
TENGZHOU UNI-TECH CO.,LTD was established in 2010.We are professional machine export in China. Our main products is grinding machine, turret milling machine.We have own quality control engineers and established quality control system to assure the customers' requirements. The machines are widely exported to more than 90 countries & regions,including U.S.A.,Canada,Germany,Italy,Spain,G.B.,France,Turkey,Australia,Korea and so on,especially Europe & America cover the main part of the market.
We would like to establish long-term business-relations with customers all over world on the basis of sincere-cooperation, equality and mutual benefit. Good quality, competitive price, and satisfying service are our promises as a reliable trading partner.
Welcome come to contact us to get more details!
Canthy Guo
Tengzhou Uni-tech Co. Ltd
Tel:0632-5810216
Ph: 008618266249928

---
